1720
|

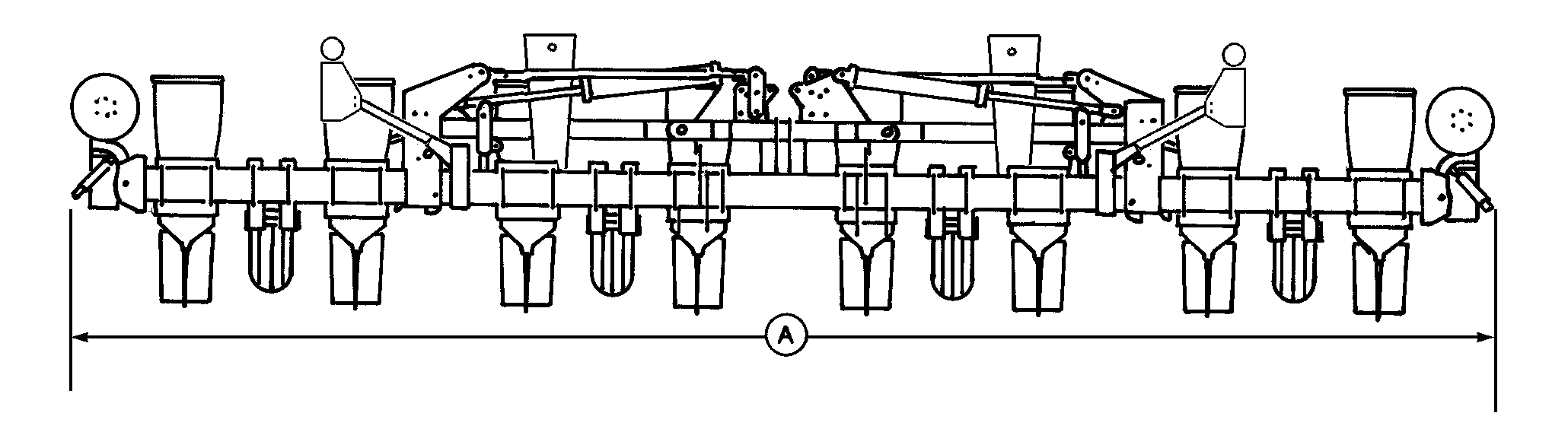

| Dimension "A" | |
| 8-Row, 914 mm (36 In.) | 7.6 m (25 Ft. 1 In.) |
| 8-Row, 965-1016 mm (38-40 In.) | 8.4 m (27 Ft. 5 In.) |
| 10-Row, 914 mm (36 In.)* | 9.2 m (30 Ft. 3 In.) |
| 10-Row, 965-1016 mm (38-40 In.)* | 10.5 m (34 Ft. 5 In.) |
| 12-Row, 762 mm (30 In.) | 9.6 m (31 Ft. 7 In.) |
| 12-Row, 914 mm (36 In.)* | 10.7 m (35 Ft. 8 In.) |
| 12-Row, 965-1016 mm (38-40 In.)* | 11.2 m (39 Ft. 3 In.) |
| 16-Row, 762 mm (30 In.) | 13.4 m (43 Ft 11 In.) |
|
* = Without Markers.
|
To assist you in transporting or storing your planter, see diagram above if applicable, for overall dimension of your planter. |
CAUTION:
Serious injury or death can result from contact with electric lines. Use care when moving or operating this machine near electric lines to avoid contact.
OM62502,150F -19-08MAY98-1/2 |
|
OM62502,150F -19-08MAY98-2/2 |
