1720
|

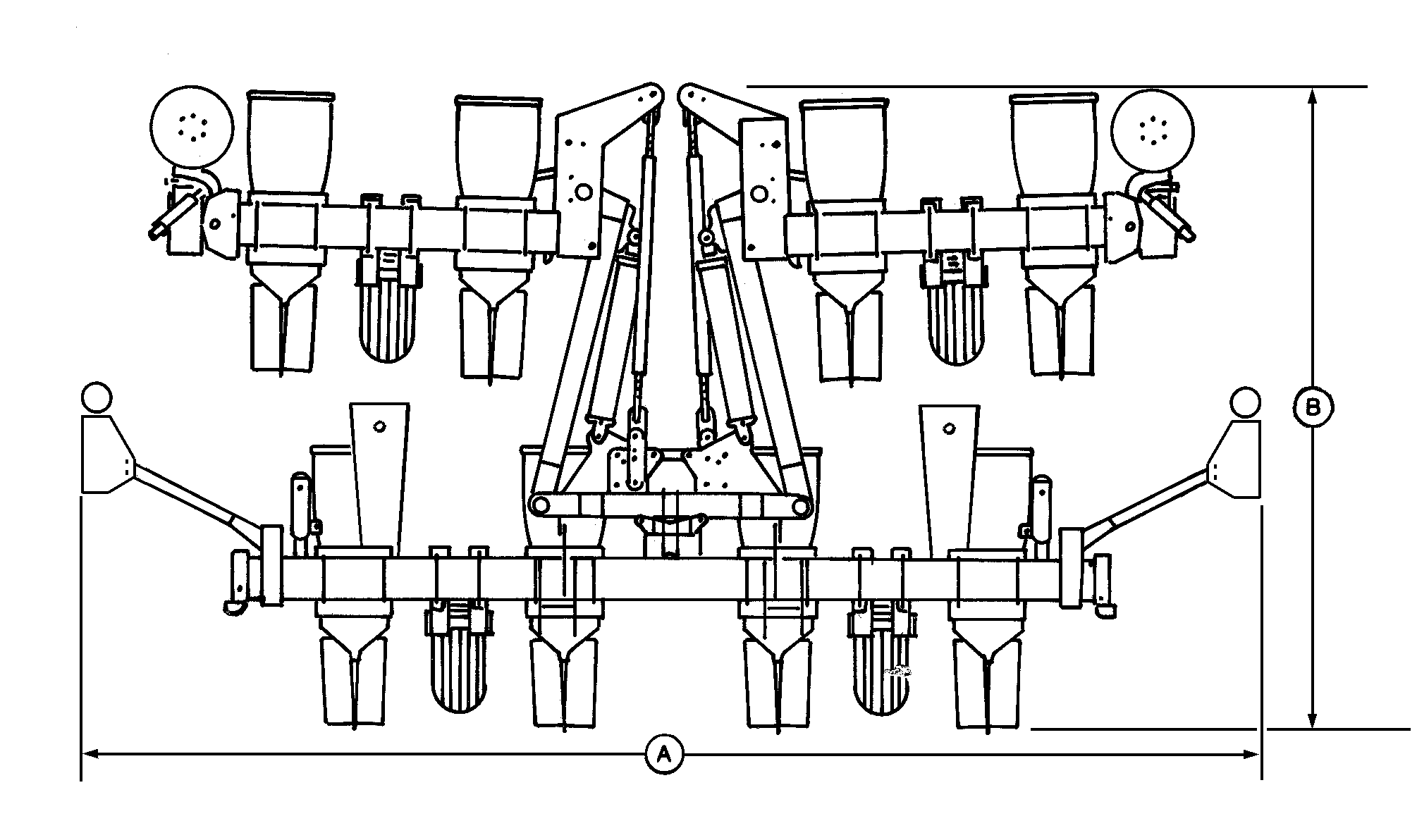

| LEGEND: | Dimension "A" With Markersa | Dimension "B" |
|---|---|---|
| 8-Row, 914 mm | 513 cm (202 in.) | 340 cm (134 in.) |
| (36 in.) | 5.1 m (16 ft. 10 in.) | 3.4 m (11 ft. 2 in.) |
| aOn 4960 Tractors with 18.4R-46 rear tires with hitch pin 42 In. off ground. | ||
OM62502,150H -19-08MAY98-1/2 |
|
|
|
when moving or operating this machine near electric lines to avoid contact. |
CAUTION:
Serious injury or death can result from contact with electric lines. Use care

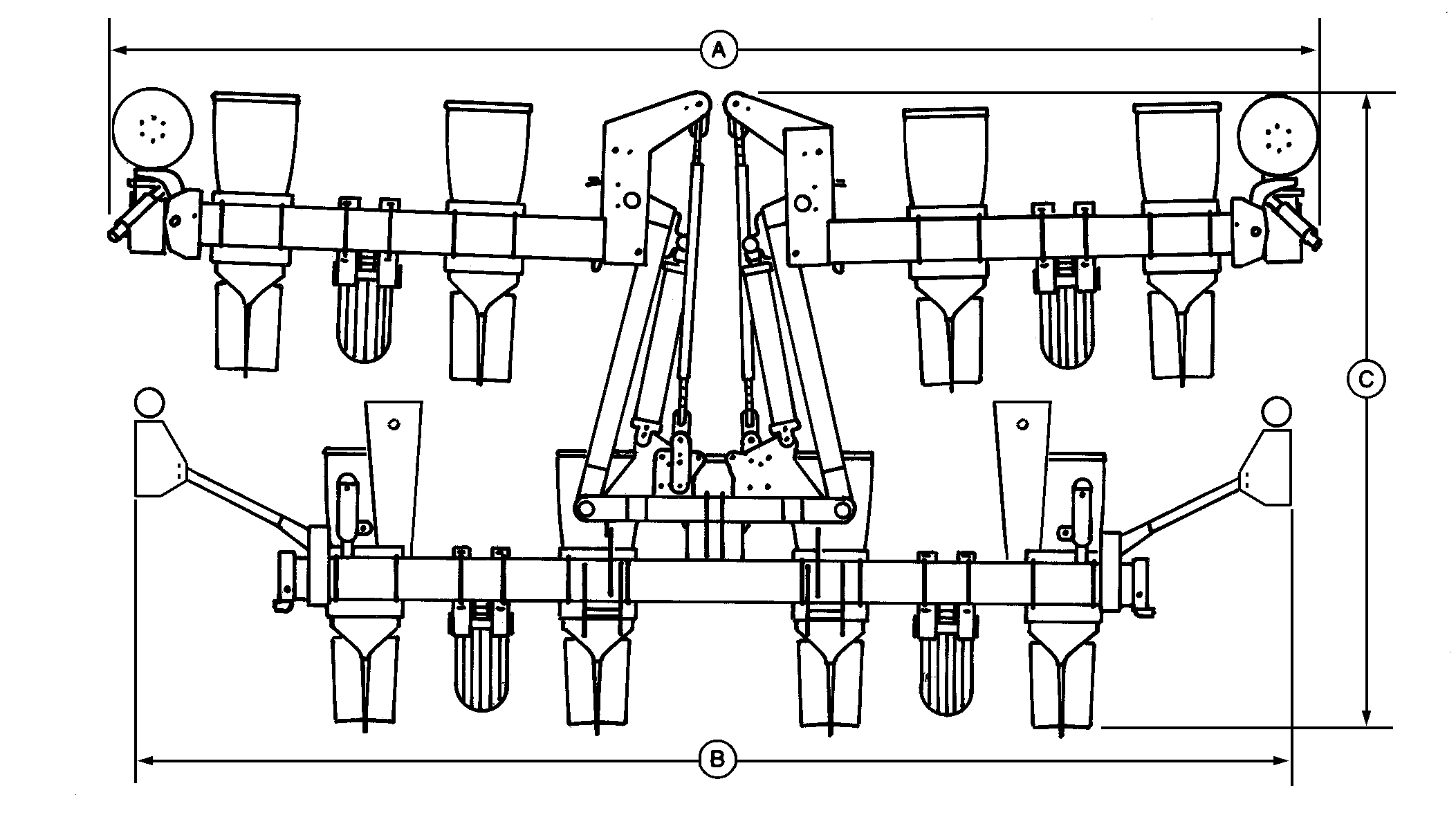

| LEGEND: | Dimension "A" With Markers | Dimension "B" | Dimension "C"a |
|---|---|---|---|
| 8-Row, 965-1016 mm | 533 cm (210 in.) | 513 cm (202 in.) | 340 cm (134 in.) |
| (38-40 in.) | 5.3 m (17 ft. 6 in.) | 5.1 m (16 ft. 10 in.) | 3.4 m (11 ft. 2 in.) |
| aOn 4960 Tractors with 18.4R-46 rear tires with hitch pin 42 In. off ground. | |||
|
|
when moving or operating this machine near electric lines to avoid contact. |
OM62502,150H -19-08MAY98-2/2 |
