1720-Hitch Raised
|

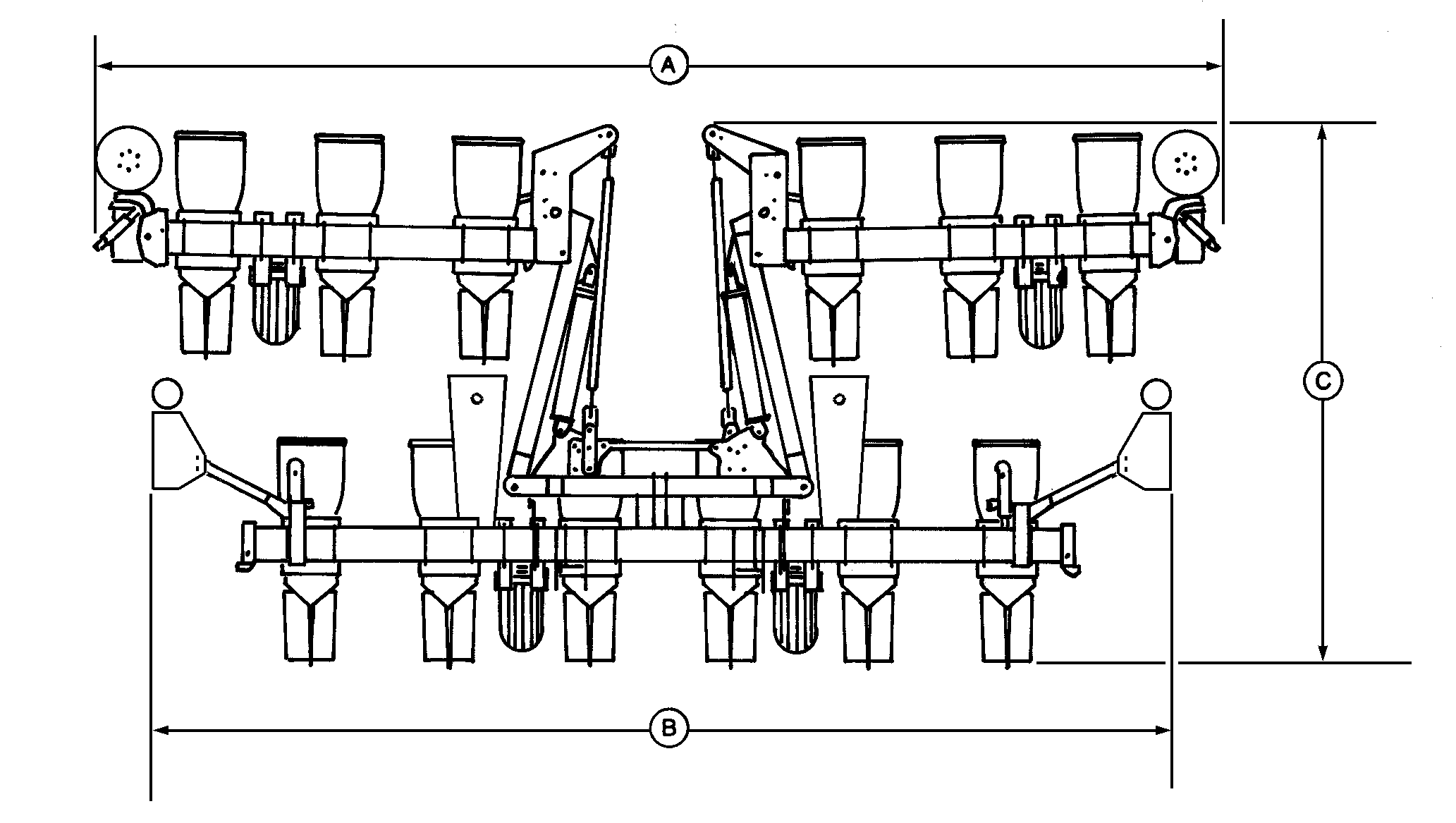

| LEGEND: | Dimension "A" W/O Markers | Dimension "B" | Dimension "C"a |
|---|---|---|---|
| 8-Row, 914 mm | 394 cm (155 in.) | 513 cm (202 in.) | 340 cm (134 in.) |
| (36 in.) | 39.4 m (12 ft. 9 in.) | 51.3 m (16 ft. 8 in.) | 34 mm (11 ft. 2 in.) |
| 8-Row, 965-1016 mm | 462 cm (182 in.) | 503 cm (198 in.) | 340 cm (134 in.) |
| (38-40 in.) | 4.6 m (15 ft. 2 in.) | 5 m (16 ft. 5 in.) | 3.4 m (11 ft. 2 in.) |
| aOn 4960 Tractors with 18.4R-46 rear tires with hitch pin 42 In. off ground. | |||
|
|
when moving or operating this machine near electric lines to avoid contact. |
CAUTION:
Serious injury or death can result from contact with electric lines. Use care
OM62502,150K -19-08MAY98-1/1 |
