Location of Hitch Pins on Tractors With Category 3N/2 Hitch Without Quick-Coupler (1720 8-Row Wide and 12-Row Narrow)

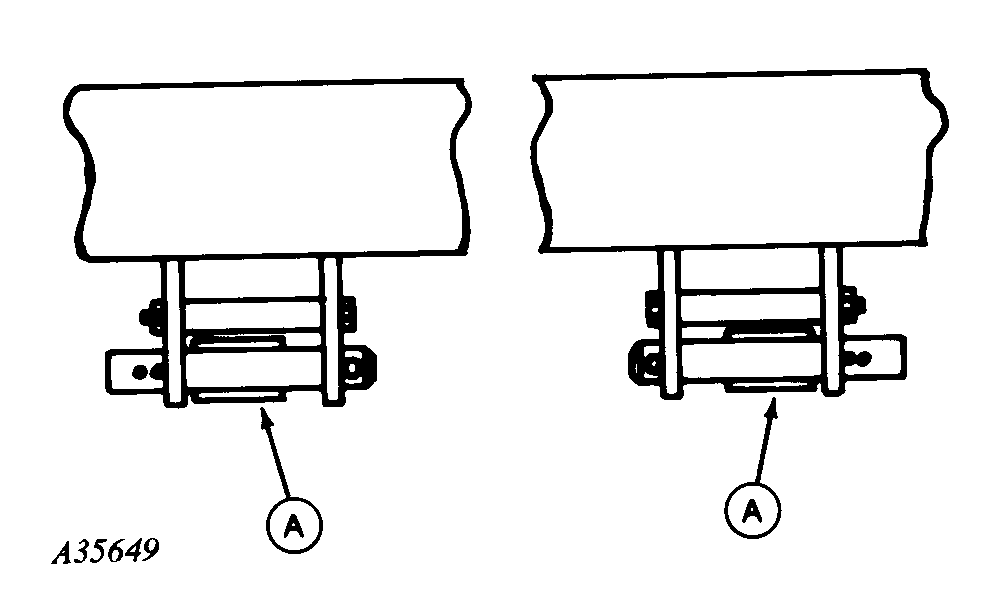

Bushings are required on hitch pins as shown when attaching planter to tractor with Category 3N/2 Hitch without Quick-Coupler. For parts, see your John Deere dealer.

A quick-coupler is required for tire clearance on 4455 type tractors.

A-Bushing

OM62502,15G -19-08MAY98-1/1
