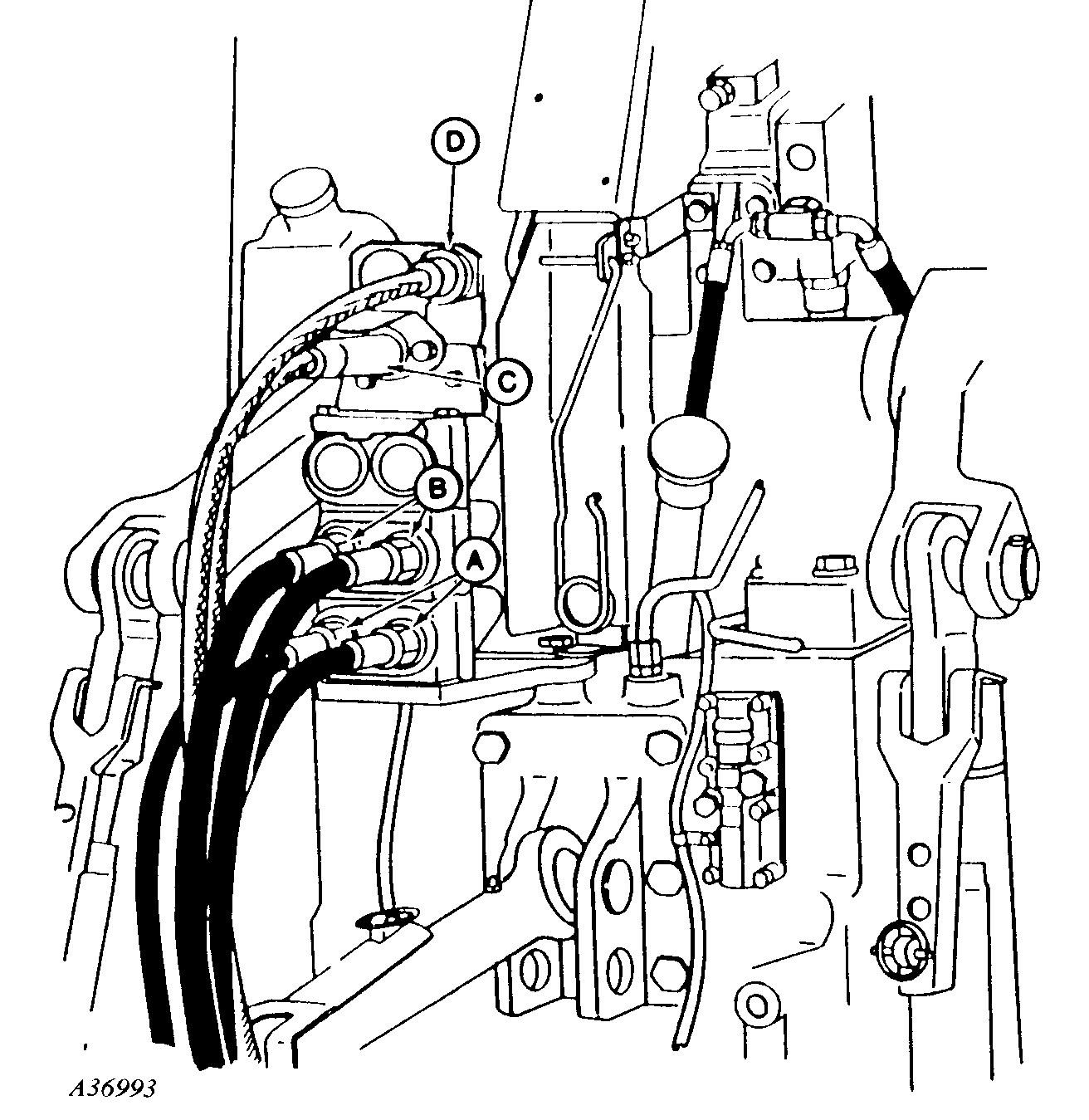

A-Lift Assist/Marker Hoses

B-Fold Hoses

C-7-Pin Connector

D-Wiring Harness

If planter is equipped with lift assist wheels and automatic markers, connect hoses (A) to breakaway coupler number 1.

Connect fold hoses (B) to breakaway coupler number 2.

Connect the planter warning lamp harness to the seven-pin connector (C).

Connect monitor wiring harness (D).

NOTE: For 1720 12-row narrow planters equipped with wing lift kits:

The wing lift cylinders may be plumbed directly to tractor SCV or, if planter is equipped with row markers, to planter marker sequence valve.

For 1720 planters, color band codes are used when connecting hydraulic hoses.
