A-Motor Adapter

B-Control Valve

C-Return Hose

D-Pressure Hose

CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

IMPORTANT: Damage to blower motor may occur if hoses are assembled incorrectly. Check hydraulic connections before operating the vacuum motor.

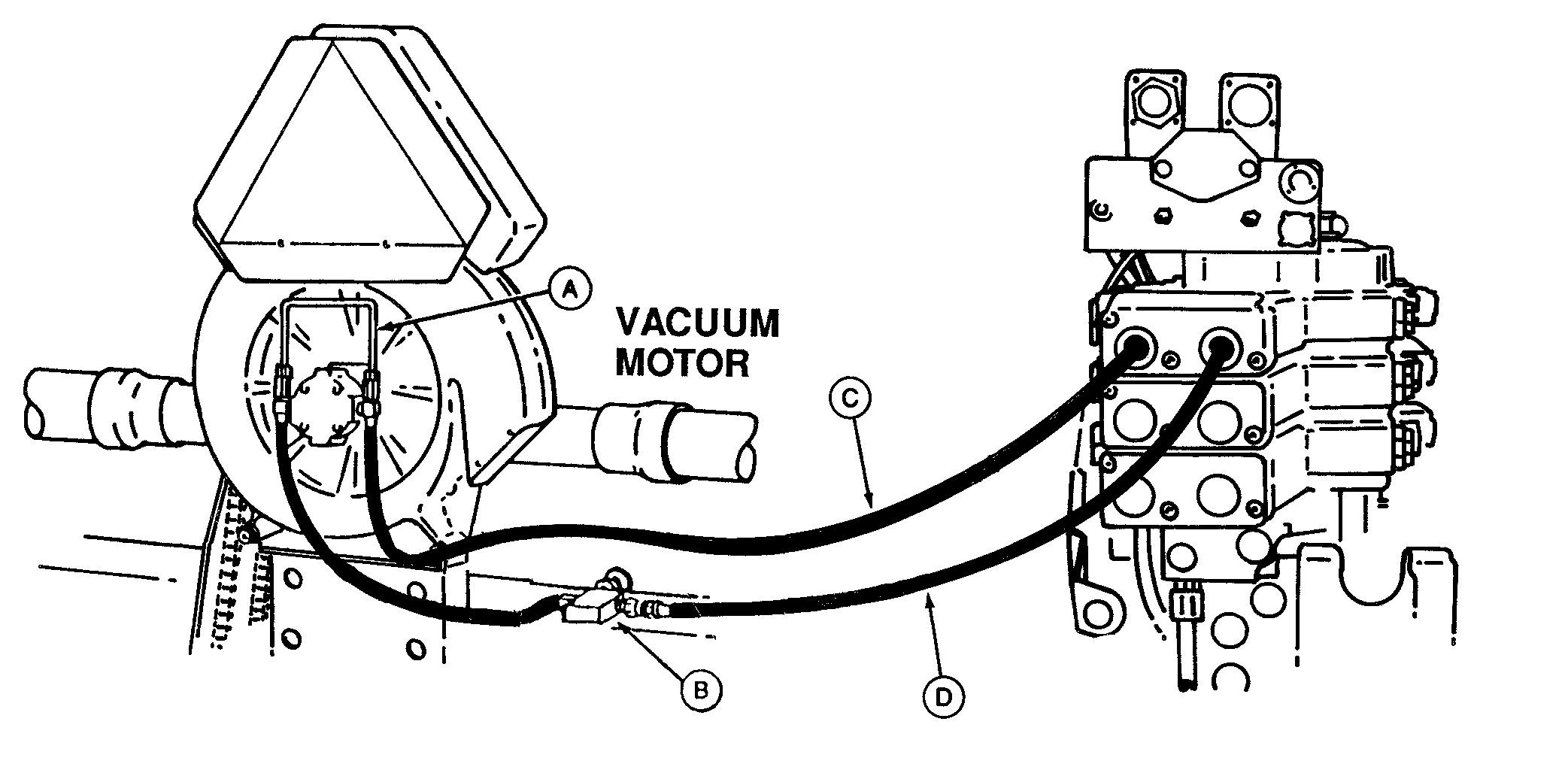

Attach vacuum motor adapter (A). Position flow control valve (B) on frame with valve flow open.

Insert hose (C) into left-hand side of SCV number 3. Insert pressure hose (D) into right-hand side of SCV number 3.

VACUMETER is a trademark of Deere & Company

OM62502,40B -19-08MAY98-1/2

A -Adapter, Motor
B-Valve, Flow Control
C-First Blower Hose, Return

D-First Blower Hose, Pressure

E-Second Blower Hose, Return

F-Second Blower Hose, Pressure

CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

IMPORTANT: Damage to blower motor will occur if hoses are connected incorrectly. Check hydraulic connections before operating the vacuum motor.

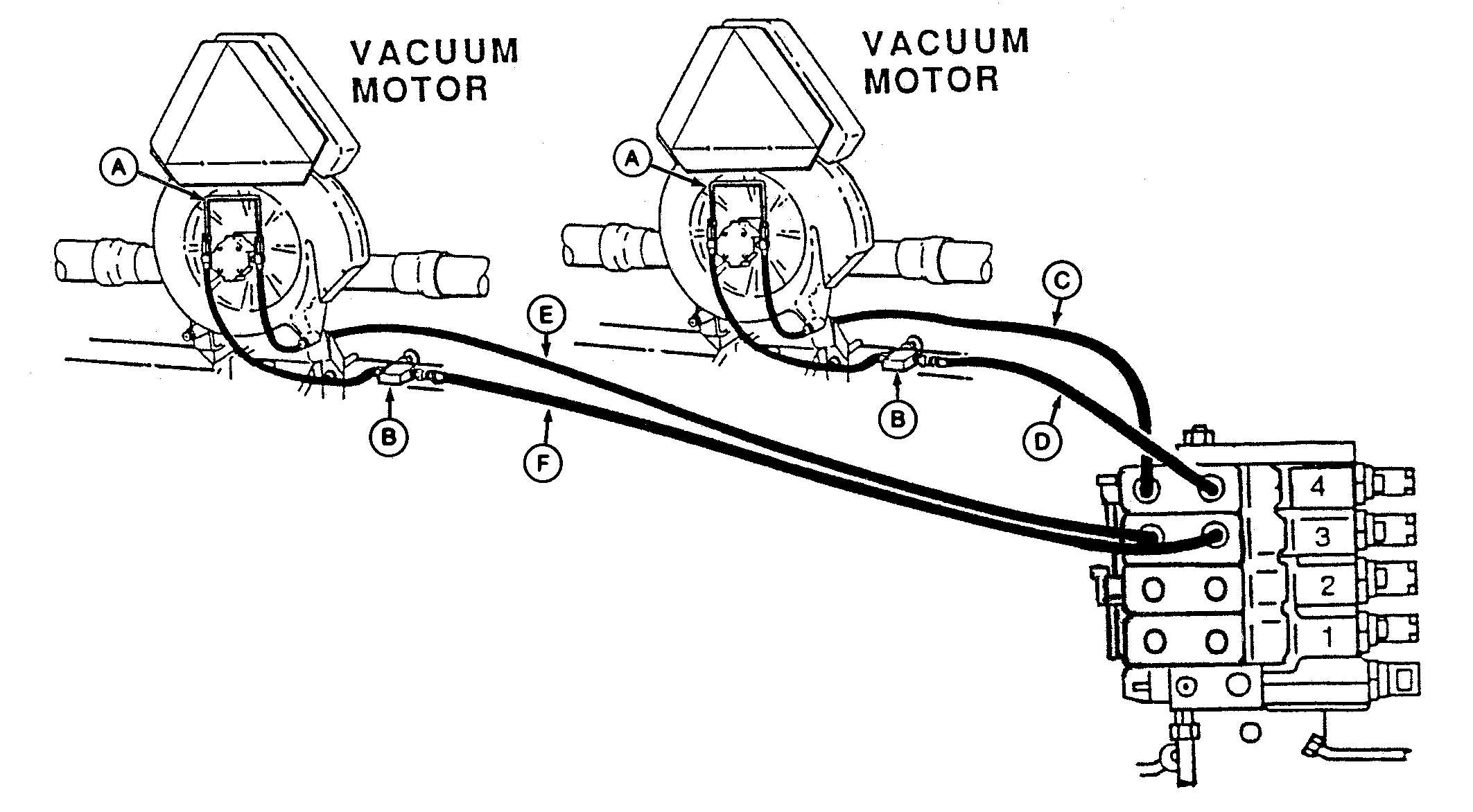

Vacuum motor adapters (A) must be installed. Position flow control valves (B) on frame with valve fully open. Insert RETURN hose (C) from one vacuum motor into left-hand side of SCV number 4. Insert PRESSURE hose (D) into right-hand side of SCV number 4. Insert RETURN hose (E) from the other vacuum motor into left-hand side of SCV number 3. Insert PRESSURE hose (F) into right-hand side of SCV number 3.

OM62502,40B -19-08MAY98-2/2
