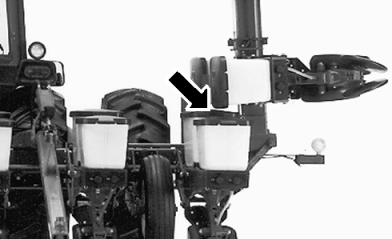

Detaching from TractorIMPORTANT: Do not lower 1710 planter with wings folded. Seed hoppers will hit (bold arrow). Lower wings before lowering planter. Lower planter to ground.
Disconnect all hydraulic hoses. Disconnect warning light harness from seven-pin connector. Disconnect monitor wiring harness. Attach dust covers to harness connectors. Lower parking stand and fasten with drilled pin and spring locking pin. Disconnect planter from tractor. |
|
CAUTION:
To avoid injury from escaping hydraulic oil under pressure, relieve the pressure in the system before removing hoses from breakaway couplers.
OM62502,45A -19-08MAY98-1/1 |
