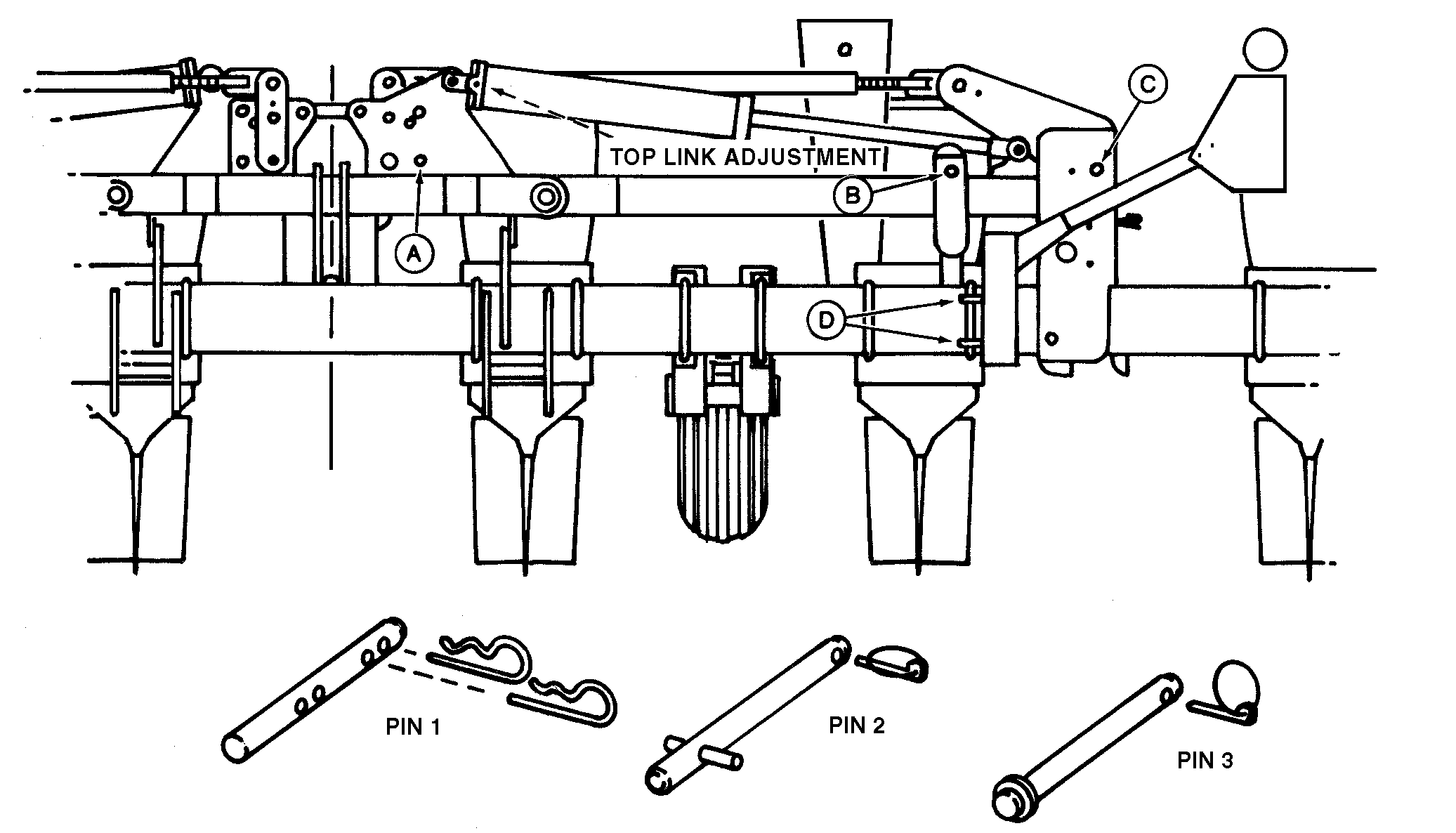

A-Position, Pin (1)

B-Position, Pin (2)

C-Position, Pin (3)

D-Position, Pin (2)

IMPORTANT: Pin 2 must be in position (B) when planting in flex or partial flex mode.

1. Pin (1) should be in storage position (A).

2. Pin (2) should be in position (B) to lock arm down when planting.

CAUTION: Shaft couplers or transmission cotter pin will fail if arm moves up.

3. Pin (3) should be stored in position (C), and is used only for rigid operation.

4. To fold for transport, remove Pin (2) and store pin in position (D).

OM62502,65D -19-08MAY98-1/1
