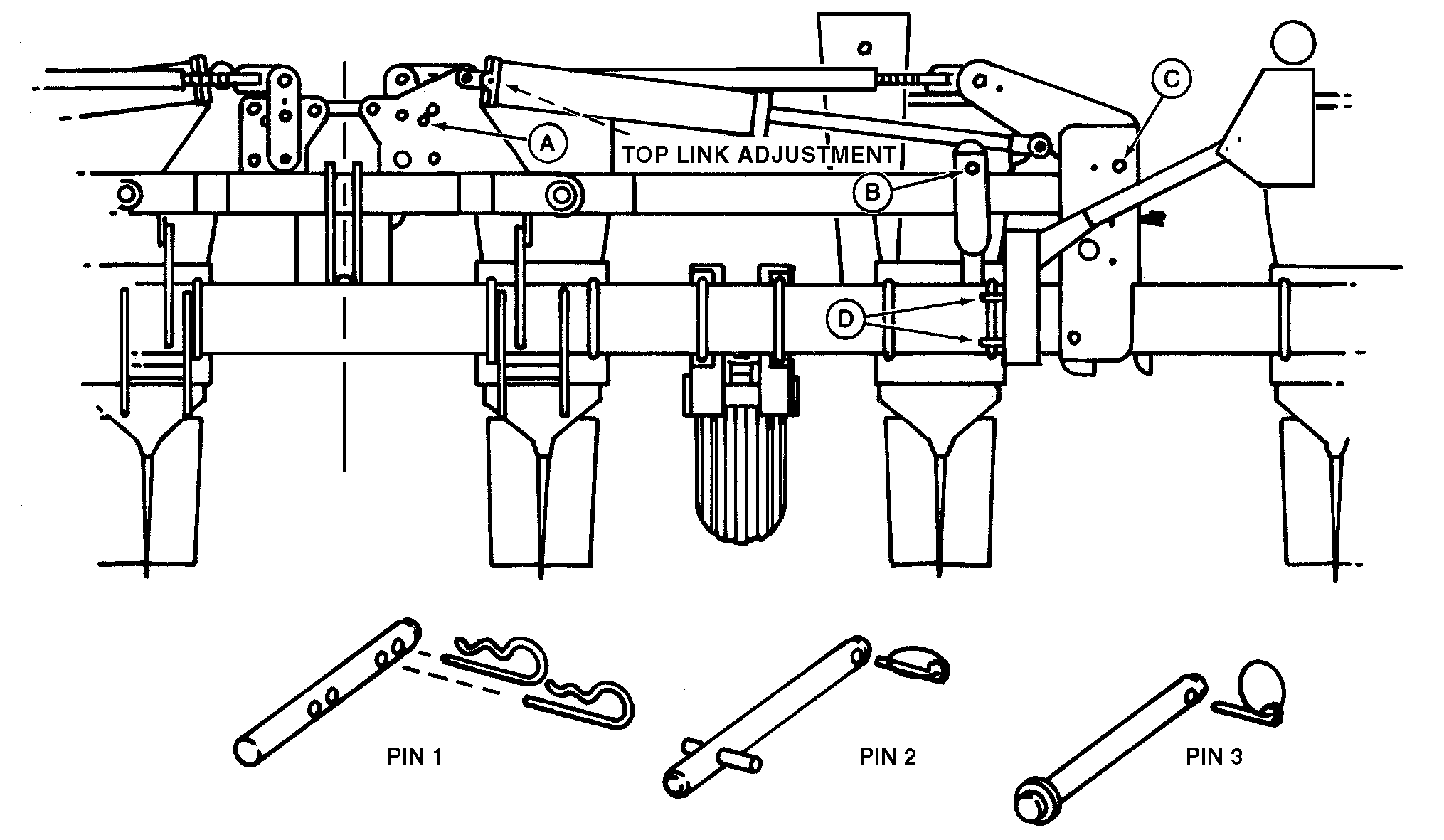

A-Position, Pin (1)

B-Position, Pin (2)

C-Position, Pin (3)

D-Position, Pin (2)

IMPORTANT: Pin 2 must be in position (B) when planting in flex or partial flex mode.

1. Pin (1) should be in position (A).

2. Pin (2) should be in position (B) to lock arm down when planting.

CAUTION: Shaft couplers or transmission cotter pin will fail if arm moves up.

3. Pin (3) should be stored in position (C).

4. To fold for transport, remove Pin (2) and store pin in position (D).
