For Rigid Operation-1720

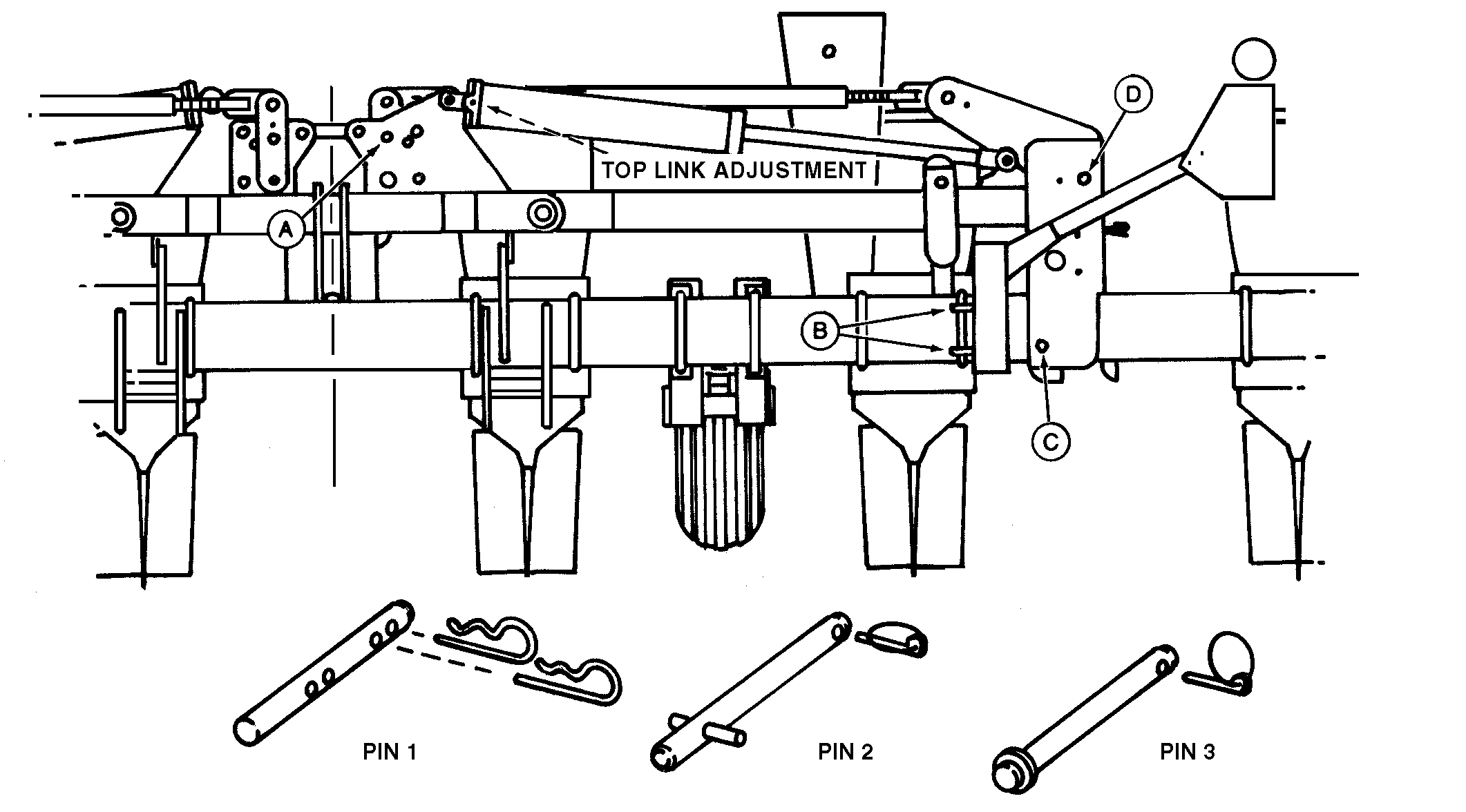

A44809


A-Position, Pin (1)


B-Position, Pin (2)


C-Position, Pin (3)


D-Position, Pin (3)

1. Pin (1) should be in locking position (A).

2. Pin (2) should be in storage position (B).

3. Pin (3) should be in locking position (C) for planting.

causym CAUTION: Shaft couplers or transmission cotter pin will fail if fold joint moves.

4. To fold for transport, remove Pin (3) and store pin in position (D).

5. To adjust top link for rigid operation,

a. Raise planter off ground in unfold position.

b. Relieve all pressure.

c. Adjust top link until Pin (3) is easily installed in position (C).

OM62502,65F -19-08MAY98-1/1
