Marker Length
Loosen jam nuts and set screws (A) on marker and with the marker in the down position, adjust to length shown below with the marker in the down position. Dimension (B) is measured from the center line of the planting unit to the marker disk. This is an approximate dimension and should be checked in the field.
| Planter |
Row Spacing |
Dimension "B" |
| 8-Row Wide |
914 mm (36 in.) |
4114 mm (162 in.) |
| |
965 mm (38 in.) |
4343 mm (171 in.) |
| |
1016 mm (40 in.) |
4572 mm (180 in.) |
| 10-Row |
762 mm (30 in.) |
4191 mm (165 in.) |
| 12-Row Narrow |
70 cm (27.5 in.) |
4540 mm (179 in.) |
| |
762 mm (30 in.) |
4953 mm (195 in.) |
| 12-Row Wide |
914 mm (36 in.) |
5944 mm (234 in.) |
| |
965 mm (38 in.) |
6274 mm (247 in.) |
| |
1016 mm (40 in.) |
6604 mm (260 in.) |
| 16-Row |
762 mm (30 in.) |
6477 mm (255 in.) |
Tighten set screws and jam nuts.

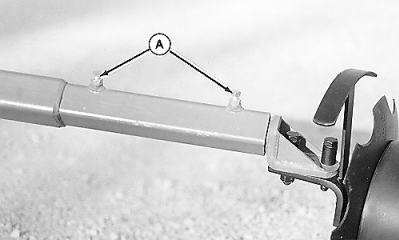

A-Set Screws

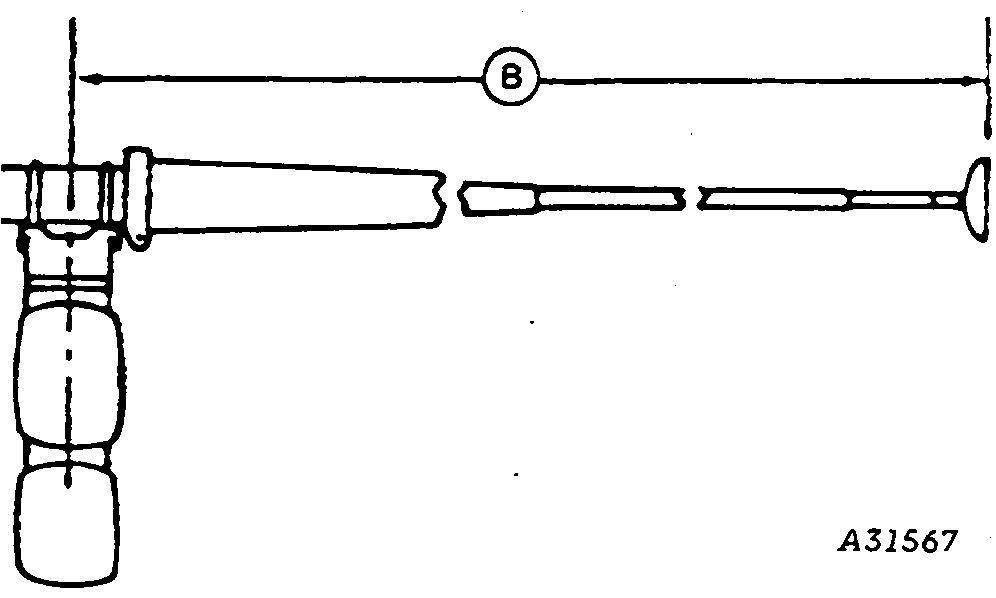

B-Dimension
|
