Drive Wheels

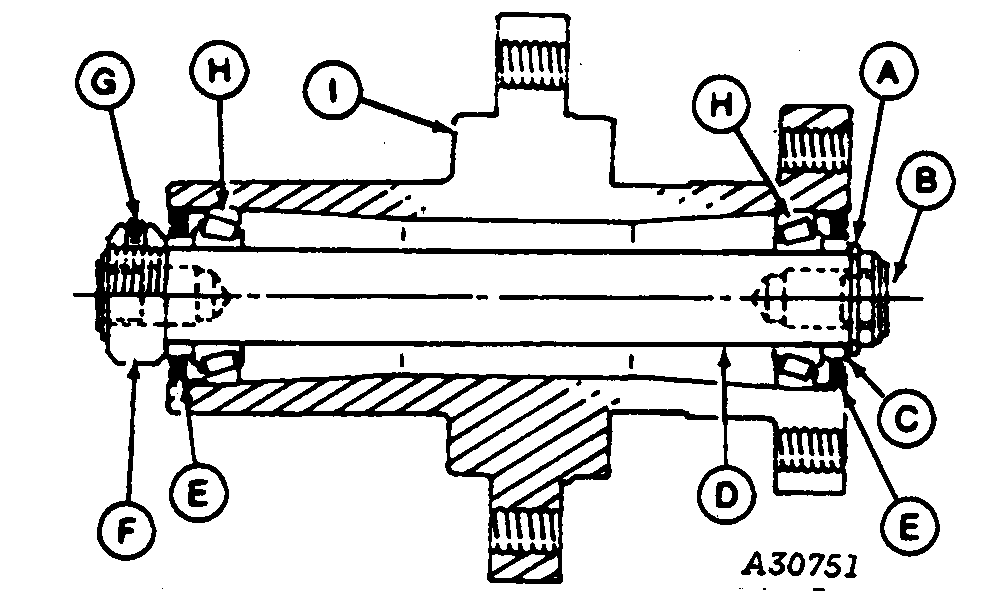

Should the drive wheel hub and cup assembly (I) be disassembled for any reason, clean and repack the bearing (H) with wheel bearing grease and assemble on the axle. Be careful not to damage seals (E) on seal bushings. Install the special jam nut (F) on one end of axle shaft (D). While turning the hub, adjust the jam nut until bearings bind. Back off nut to approximately 15 to 20 degrees (1/16 to 1/8 turn). Tighten jam nut.

A-Snap Ring
B-Cap Plug
C-Spacer
D-Axle Shaft
E-Oil Seal
F-Jam Nut
G-Set Screw
H-Bearing
I-Wheel Hub and Cup Assembly
