Folding and Unfolding the Planter

CAUTION: Be certain everyone is clear of planter.

Serious injury or death can result from contact with electric lines. Use care when moving or operating this machine near electric lines to avoid contact.

Rigid Operation: Wing lock pins (A) installed in lower position for planting.

A-Lock Pins

STACKOM,TR,D -19-22NOV93-1/3

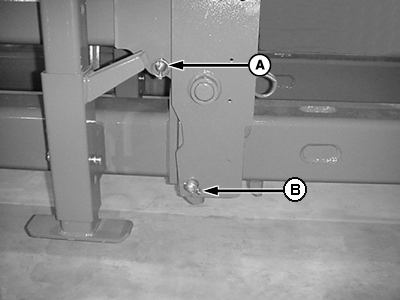

Flex Fold: Wing Lock Pins (A) are required, along with Rigid Lock Pins (B) in shown position for planting.

A-Wing Lock Pins
B-Rigid Lock Pins

STACKOM,TR,D -19-22NOV93-2/3

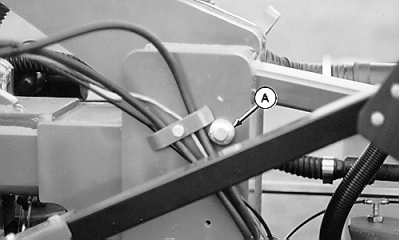

To fold planter, remove and install pins (A) in storage position and attach locking pin.

A-Pins

STACKOM,TR,D -19-22NOV93-3/3
