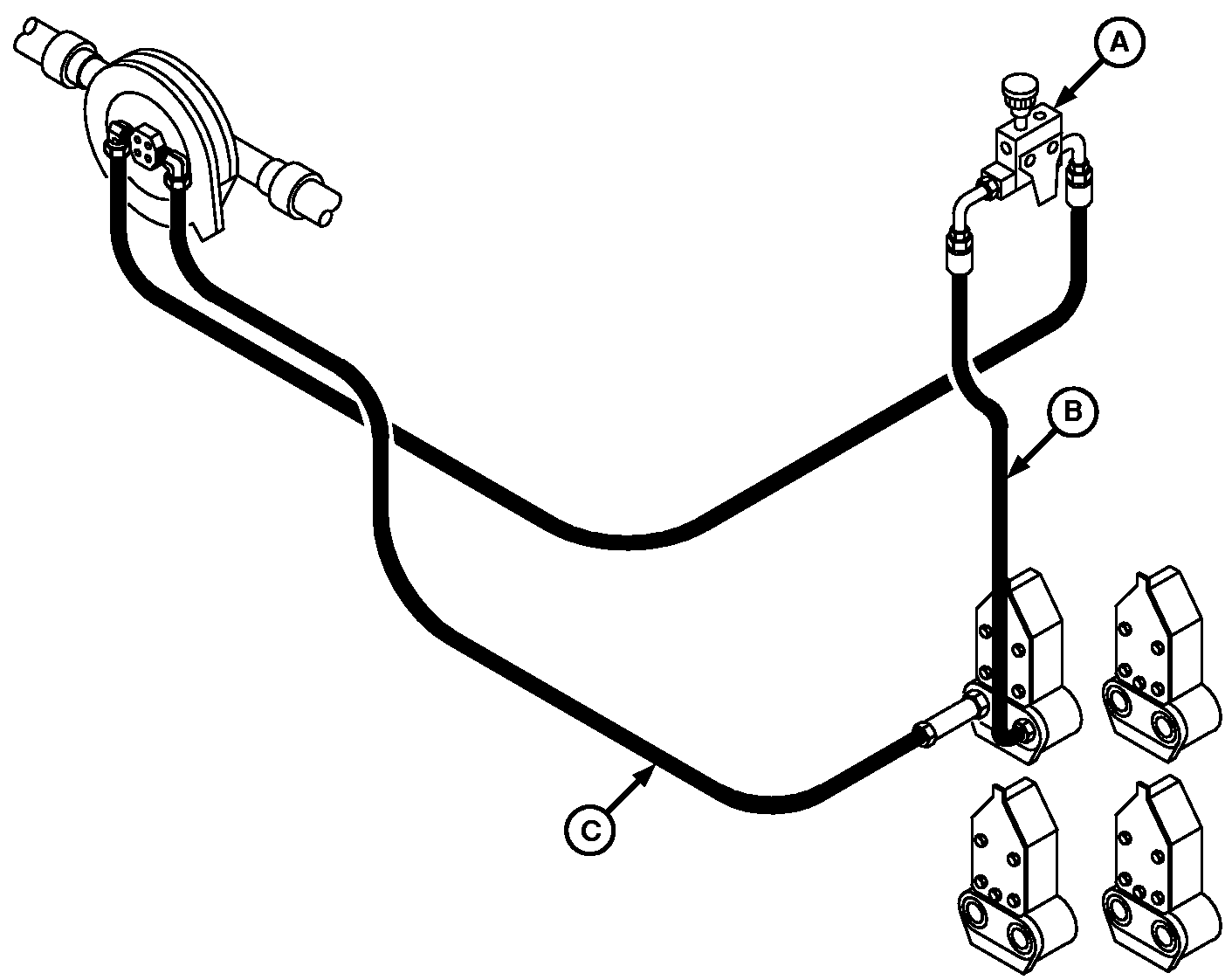

Connecting VACUMETER™ Using Planter Flow Control Valve to Control Motor (60-70 Series Four-Wheel Drive Tractors

A-Planter Flow Control Valve

B-Pressure Hose

C-Return Hose

IMPORTANT: Damage to blower motor will occur if hoses are connected incorrectly. Check hydraulic connections before operating vacuum motor. See CHECKING HYDRAULIC CONNECTIONS in Preparing the Vacuum Meter section. IMPORTANT: To prevent damage to vacuum motor, do not return SCV lever to neutral to shut off vacuum. NOTE: For non John Deere tractors, see dealer for vacuum motor hook-up.

1. Mount planter flow control valve (A) assembly on cab. 2. Insert pressure hose (B) with planter flow control valve (A) into right-hand SCV coupler. NOTE: Return hose must be equipped with a return coupler with cap. 3. Insert return hose (C) into left-hand SCV.

VACUMETER is a trademark of Deere & Company

OUO1074,0001399 -19-11SEP01-1/1
