Setting Pump Drive Range

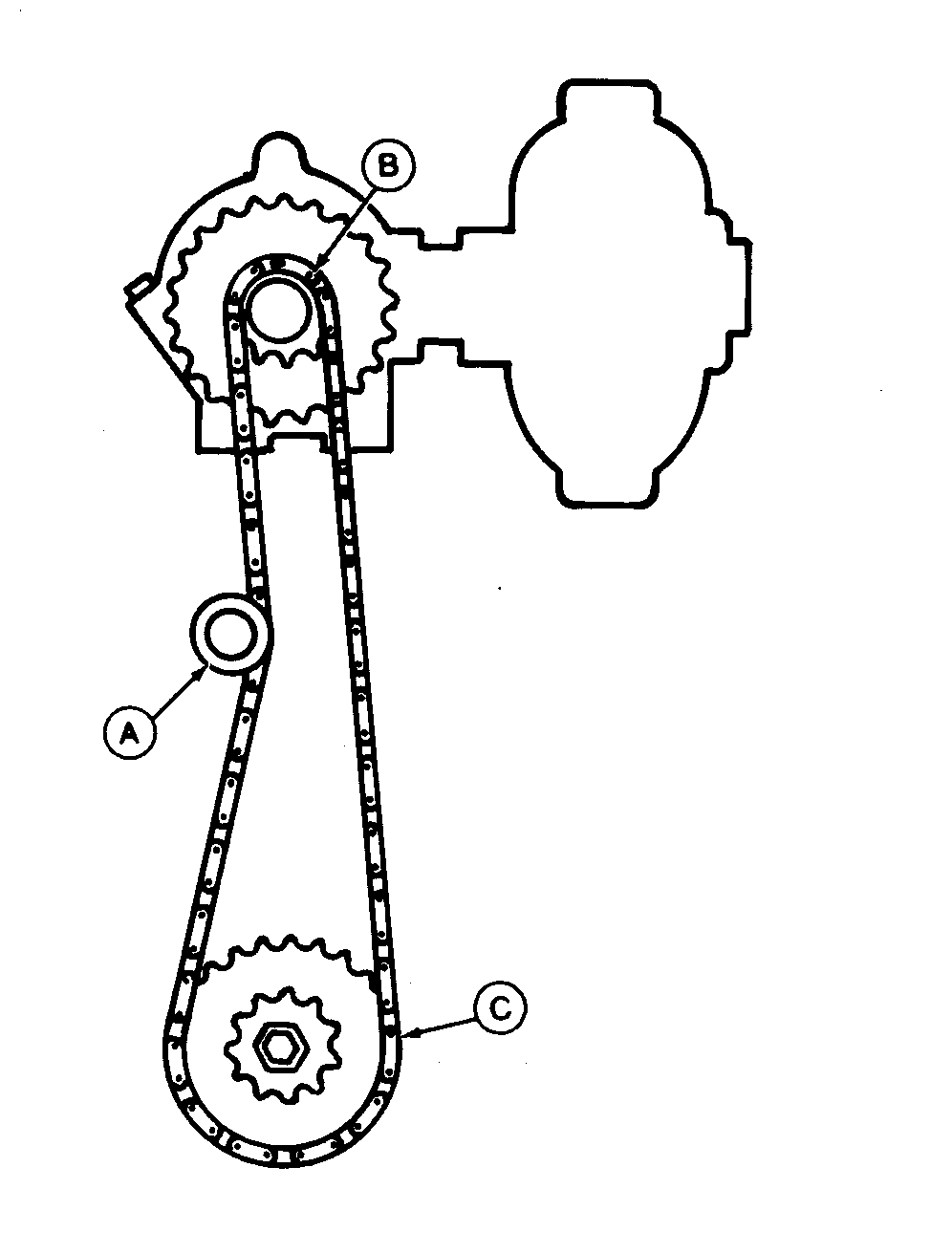

1. For HIGH DRIVE range, loosen roller idler (A). Move chain to driven 16-tooth sprocket (B) on pump and to drive 35-tooth sprocket (C).

2. Tighten idler.


A-Roller Idler
B-Sprocket, 16-Tooth
C-Sprocket, 35-Tooth

A35430

720016ROM,AT,I4 -19-20MAY93-1/2

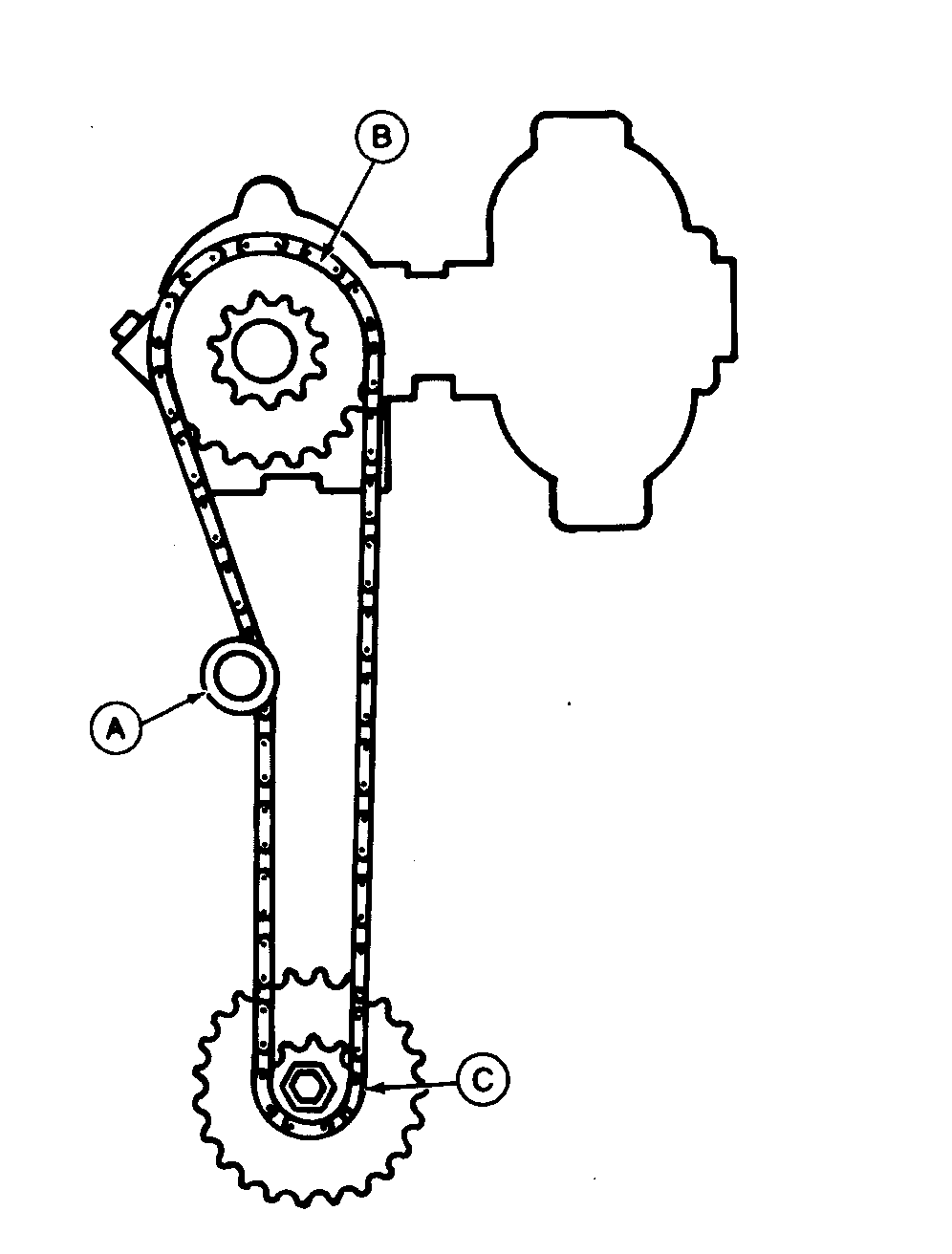

3. For LOW DRIVE range, loosen roller idler (A). Move chain to driven 35-tooth sprocket (B) on pump and to drive 16-tooth sprocket (C).

4. Tighten idler.


A-Roller Idler
B-Sprocket, 35-Tooth
C-Sprocket, 16-Tooth

A35431

720016ROM,AT,I4 -19-20MAY93-2/2
