Positioning Rockshaft Hitch Pins

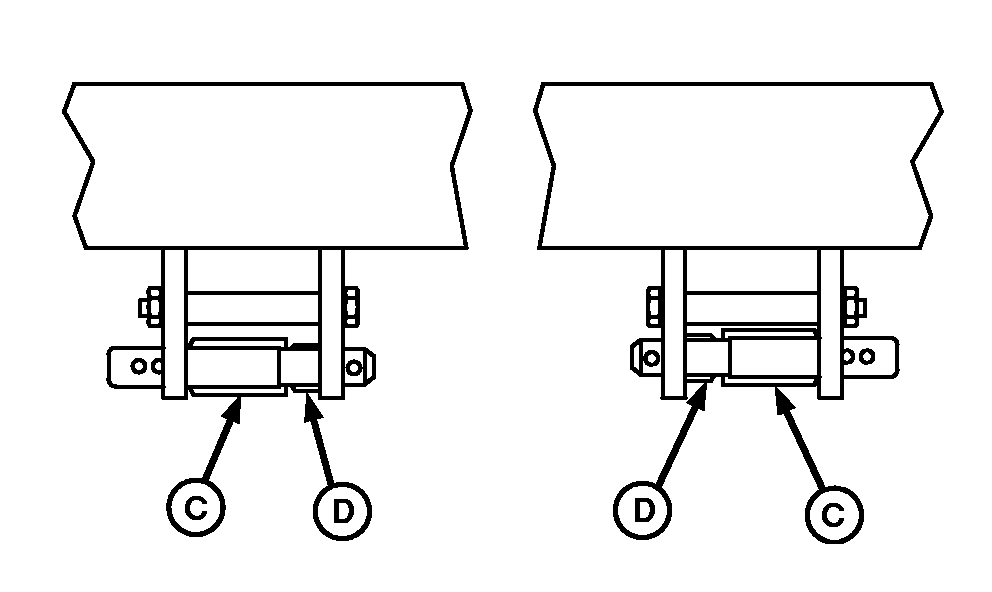

IMPORTANT: If using category 3N/2 hitch without quick coupler, install pins in position (A) with bushings (C) and (D) installed.

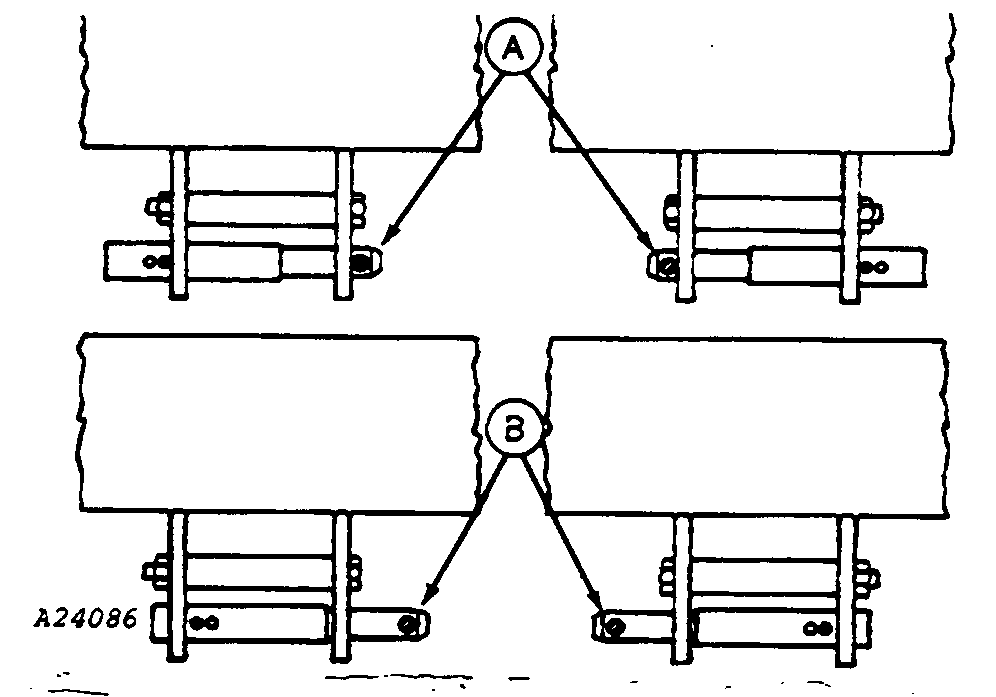

Install lower hitch pins in position (A) for a category 2 hitch without quick coupler or a category 3 hitch with quick coupler.

Install lower hitch pins in position (B) for a category 2 or 3N hitch with quick coupler.

A-Pin Position
B-Pin Position
C-Bushing
D-Bushing

AG,OUO6074,1172 -19-04AUG00-1/1
