Seed Disk Recommendations

The following seed disk recommendations show a seed size range where optimum performance can be expected with each seed disk. Select a disk which best handles the seed to be planted or best represents the majority of seed sizes to be planted.

IMPORTANT: Consult your local John Deere dealer for the most complete and up to date listing of available seed disks.

If several seed sizes are to be planted and their seed size falls within overlapping areas of two seed disks, it is recommended that BOTH seed disks be ordered to optimize performance to individual seed shape.

AG,OUO6074,1175 -19-04AUG00-1/19

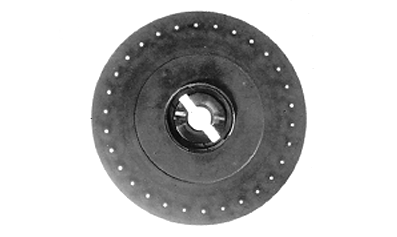

OIL SUNFLOWER

Part No. H136478 is recommended for oil sunflower seed sizes 4 (small), 3 (medium) and 2 (large). This disk is NOT recommended for oil sunflower seed sizes 1 (extra large) and 5 (extra small) or confectionary sunflower seeds.

A46249

AG,OUO6074,1175 -19-04AUG00-2/19

CORN

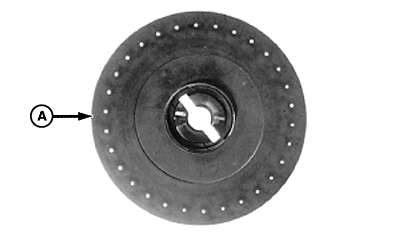

A -Part No. H136478 is for seed sizes ranging from 5060 seeds/kg to 7040 seeds/kg (2300 seeds/lb to 3200 seeds/lb).

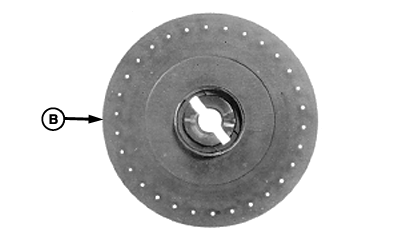

B -Part No. A50617 (standard) is for seed sizes ranging from 1980 seeds/kg to 4400 seeds/kg (900 seeds/lb to 2000 seeds/lb).

B -Part No. A43215 (small) is for seed sizes ranging from 3520 seeds/kg to 6160 seeds/kg (1600 seeds/lb to 2800 seeds/lb).

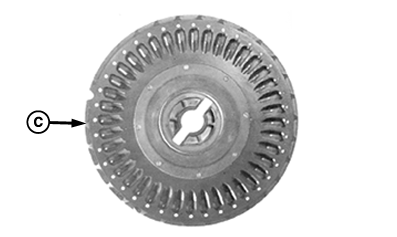

C -Part No. A52391 is for seed sizes ranging from 3300 seeds/kg to 7040 seeds/kg (1500 seeds/lb to 3200 seeds/lb).

C -Part No. A52904 is for seed sizes ranging from 3300 seeds/kg to 7040 seeds/kg (1500 seeds/lb to 3200 seeds/lb).

A46289
A46252
A46276

AG,OUO6074,1175 -19-04AUG00-3/19

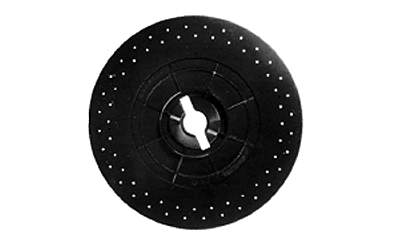

ACID-DELINTED COTTON

Part No. A56251 is for all sizes.

A46250

AG,OUO6074,1175 -19-04AUG00-4/19

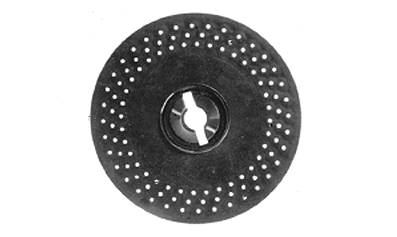

SOYBEAN

Part No. A42586 is for all sizes.

A46253

AG,OUO6074,1175 -19-04AUG00-5/19

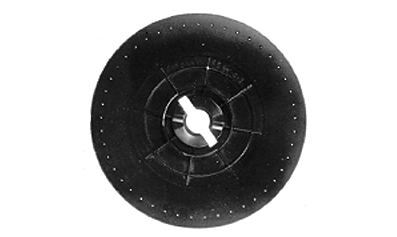

SORGHUM

Part No. A43066 is recommended for dry land and irrigated planting of sorghum seed ranging in size from 22,000 seeds/kg to 35,200 seeds/kg (10,000 seeds/lb to 16,000 seeds/lb).

Use of smaller seeds may result in some overpopulation.

A46251

AG,OUO6074,1175 -19-04AUG00-6/19

HIGH-RATE SORGHUM

Part No. A52802 is recommended for dry land and irrigated planting of sorghum seed ranging in size from 22,000 seeds/kg to 35,200 seeds/kg (10,000 seeds/lb to 16,000 seeds/lb).

A46250

AG,OUO6074,1175 -19-04AUG00-7/19

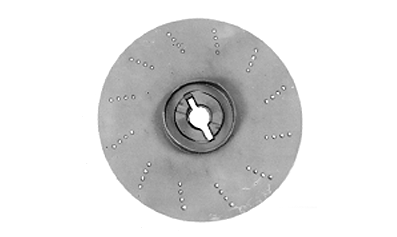

COTTON HILLDROP

Part No. A65622 is recommended for acid-delinted cotton seed. Four cotton seeds will be grouped per hill. Distance between hills can be selected within a range of 203 mm to 457 mm (8 in. to 18 in.) centers.

A46254

AG,OUO6074,1175 -19-04AUG00-8/19

SUGAR BEETS

Mono-germ - Part No. H136445 is recommended for medium size seed ranging in size from 3.0 mm to 3.6 mm (7.5/64 in. to 9/64 in.).

Mono-germ - Part No. A51713 is recommended for large size seed ranging in size from 3.4 mm to 4.0 mm (8.5/64 in. to 10/64 in.).

Pelleted - Part No. H136445 is recommended for pellets ranging in size from 3.2 mm to 4.0 mm (8/64 in. to 10/64 in.).

Pelleted - Part No. A51713 is recommended for pellets ranging in size from 3.6 mm to 4.6 mm (9/64 in. to 11.5/64 in.).

Pelleted - Part No. A43066 is recommended for pellets ranging in size from 3.6 mm to 4.6 mm (9/64 in. to 11.5/64 in.).

Mono-germ - Part No. A51712 is recommended for small size seed ranging in size from 2.6 mm to 3.2 mm (6.5/64 in. to 8/64 in.).

A46251

AG,OUO6074,1175 -19-04AUG00-9/19

POPCORN

A -Part No. H136478 is recommended for seed sizes ranging from 5500 seeds/kg to 9900 seeds/kg (2500 seeds/lb to 4500 seeds/lb).

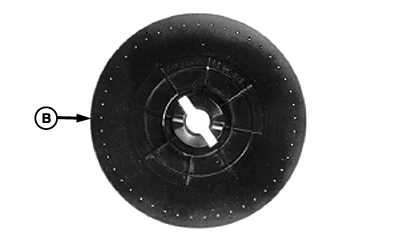

B -Part No. A43066 is recommended for seed sizes with more than 9900 seeds/kg (4500 seeds/lb).

A46289
A46275

AG,OUO6074,1175 -19-04AUG00-10/19

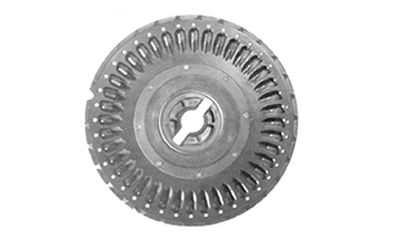

SWEET CORN

Part No. A52391 (LARGE) is recommended for seed sizes with 8580 seeds/kg (3900 seeds/lb) or fewer.

Part No. A52390 (SMALL) is recommended for seed sizes with 7700 seeds/kg (3500 seeds/lb) or more.

A46255

AG,OUO6074,1175 -19-04AUG00-11/19

CONFECTIONARY SUNFLOWER

Part No. A52391 (LARGE) is recommended for seed sizes ranging from 4950 seeds/kg to 7150 seeds/kg (2250 seeds/lb to 3250 seeds/lb).

Part No. A52390 (SMALL) is recommended for seed sizes ranging from 7150 seeds/kg to 11,550 seeds/kg (3250 seeds/lb to 5250 seeds/lb).

A46255

AG,OUO6074,1175 -19-04AUG00-12/19

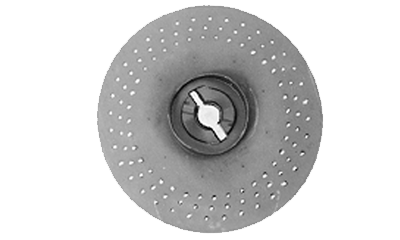

SMALL EDIBLE BEAN - CELL TYPE

Part No. H136468 Seed size recommendations are as follows:

Seed Size Range (Seeds/kg) Size Range (Seeds/lb)
Black Turtle 4180 to 5720 1900 to 2600
Navy 3960 to 5500 1800 to 2500
Pink Viva 3740 to 4290 1700 to 1950
Small White 5280 to 6600 2400 to 3000
Smooth Pea 6160 to 7040 2800 to 3200


A46256

AG,OUO6074,1175 -19-04AUG00-13/19

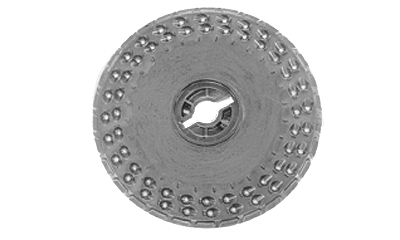

MEDIUM EDIBLE BEAN - CELL TYPE

Part No. A51696 Seed size recommendations are as follows:

Seed Size Range (Seeds/kg) Size Range (Seeds/lb)
Blackeyed Pea 3520 to 4400 1600 to 2000
Green Beans (Garden) 2200 to 4840 1000 to 2200
Kidney (Small) 2530 to 3080 1150 to 1400
Pinto 1760 to 3080 800 to 1400
Red Mexican (Small) 2640 to 3300 1200 to 1500
Wrinkle Pea 3960 to 5060 1800 to 2300


A46257

AG,OUO6074,1175 -19-04AUG00-14/19

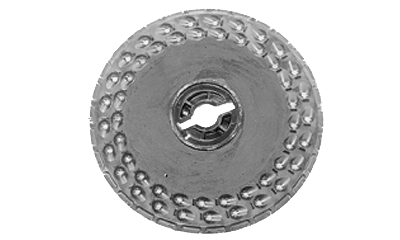

LARGE EDIBLE BEAN - CELL TYPE

Part No. H136092 Seed size recommendations are as follows:

Seed Size Range (Seeds/kg) Size Range (Seeds/lb)
Cranberry Bean 1760 to 2640 800 to 1200
Kidney (Medium) 2090 to 2530 950 to 1150
Great Northern 1980 to 2860 900 to 1300
Garbanzo 1650 to 1980 750 to 900
Peanuts (Runner) 1430 to 1760 650 to 800
Peanuts (Spanish) 2200 to 2750 1000 to 1250


A46260

AG,OUO6074,1175 -19-04AUG00-15/19

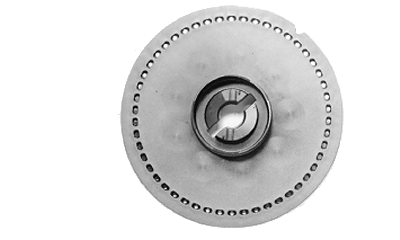

EDIBLE BEAN - FLAT TYPE

Part No. A52903 - Small

Edible Bean
Seed - Small		 Size Range (Seeds/kg) Size Range (Seeds/lb)
Green Garden, Small 3520 to 5280 1600 to 2400
Black Turtle 4180 to 5720 1900 to 2600
Navy 3960 to 5720 1800 to 2600
Small White 5280 to 7260 2400 to 3300



Part No. A52904 - Medium

Edible Bean
Seed - Medium		 Size Range (Seeds/kg) Size Range (Seeds/lb)
Green Garden, Medium 2640 to 3520 1200 to 1600
Small Red 2640 to 3300 1200 to 1500
Pinto All Sizes
Medium Kidney 2530 to 3080 1150 to 1400
Lima 2640 to 3520 1200 to 1600
Corn Seed 3300 to 7040 1500 to 3200
Pink Viva 3740 to 4180 1700 to 1900



Part No. A52878 - Large

Edible Bean
Seed - Large		 Size Range (Seeds/kg) Size Range (Seeds/lb)
Green Garden, Large 1540 to 2640 700 to 1200
Cranberry 1760 to 2640 800 to 1200
Large Kidney 1870 to 2530 850 to 1150
Great Northern 1980 to 2860 900 to 1300
Garbanzo 1650 to 1980 750 to 900



Part No. A52903 - Small

Edible Peas Size Range (Seeds/kg) Size Range (Seeds/lb)
Wrinkle 3740 to 5060 1700 to 2300



Part No. A52904 - Medium

A46261

AG,OUO6074,1175 -19-04AUG00-16/19

Edible Peas Size Range (Seeds/kg) Size Range (Seeds/lb)
Blackeyed 3520 to 4400 1600 to 2000
Smooth 6160 to 7040 2800 to 3200



AG,OUO6074,1175 -19-04AUG00-17/19

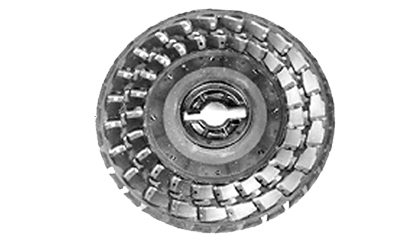

VIRGINIA PEANUT

Part No. H138722 is recommended for seed sizes ranging from 1100 seeds/kg to 1760 seeds/kg (500 seeds/lb to 800 seeds/lb).

A46259

AG,OUO6074,1175 -19-04AUG00-18/19

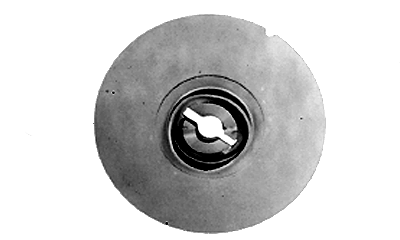

BLANK SEED DISK

Part No. A52554

The blank seed disk allows custom drilling of specific hole sizes. See your John Deere dealer for details.

A46258

AG,OUO6074,1175 -19-04AUG00-19/19
