Accessing The Vacuum Meter

1. Disengage hopper latch (A). Lift hopper upward then rearward to remove from planting unit.

A-Hopper Latch

AG,OUO6074,1177 -19-04AUG00-1/4

2. Remove vacuum hose (A) from metering unit.

A-Vacuum Hose

AG,OUO6074,1177 -19-04AUG00-2/4

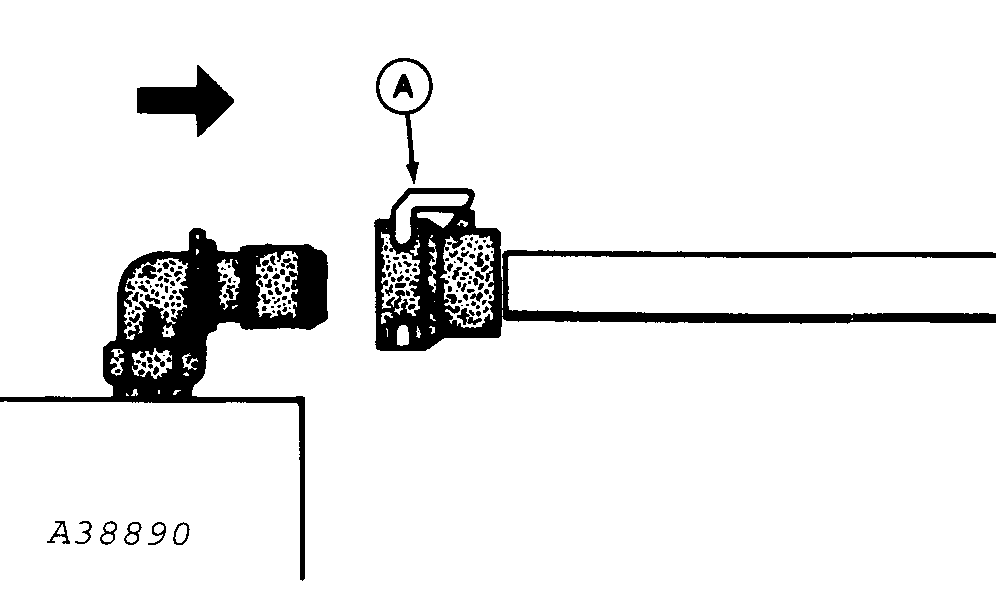

3. Squeeze retainer (A) and pull vacuum monitoring hose out of connector on units attached to monitor.

A-Retainer

AG,OUO6074,1177 -19-04AUG00-3/4

4. Disengage handle (A) and swing vacuum chamber open.

A-Handle

AG,OUO6074,1177 -19-04AUG00-4/4
