Plateless Metering Units

IMPORTANT: Always keep lids on seed hoppers when planting. If lids are left off, dust and dirt can accumulate in seed metering mechanism, causing excessive wear.

Metering units are attached directly to the bottom of seed hoppers with two wing nuts (A).


A-Wing Nuts

H44516

Finger Pick-Up Metering Unit

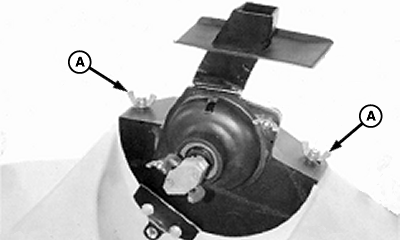

A46930

Feed-Cup Metering Unit

A40459

Radial Bean Metering Unit

AG,OUO6074,1187 -19-04AUG00-1/4

Finger Pick-Up

Equip machine with finger pick-up metering units to plant all sizes (or mixed sizes) of corn and sunflower seeds. Performance in sunflowers is optimized with use of sunflower finger assembly.

H44518

Finger Pick-Up Metering Unit

AG,OUO6074,1187 -19-04AUG00-2/4

Feed-Cup

Equip machine with feed-cup metering units to plant soybeans, edible beans, sorghum or acid-delinted cotton.

H44519

Feed-Cup Metering Unit

AG,OUO6074,1187 -19-04AUG00-3/4

Radial Bean Meter

Equip machine with radial bean metering units to plant soybeans.

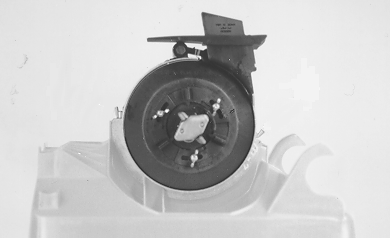

A40460

Radial Bean Metering Unit

AG,OUO6074,1187 -19-04AUG00-4/4
