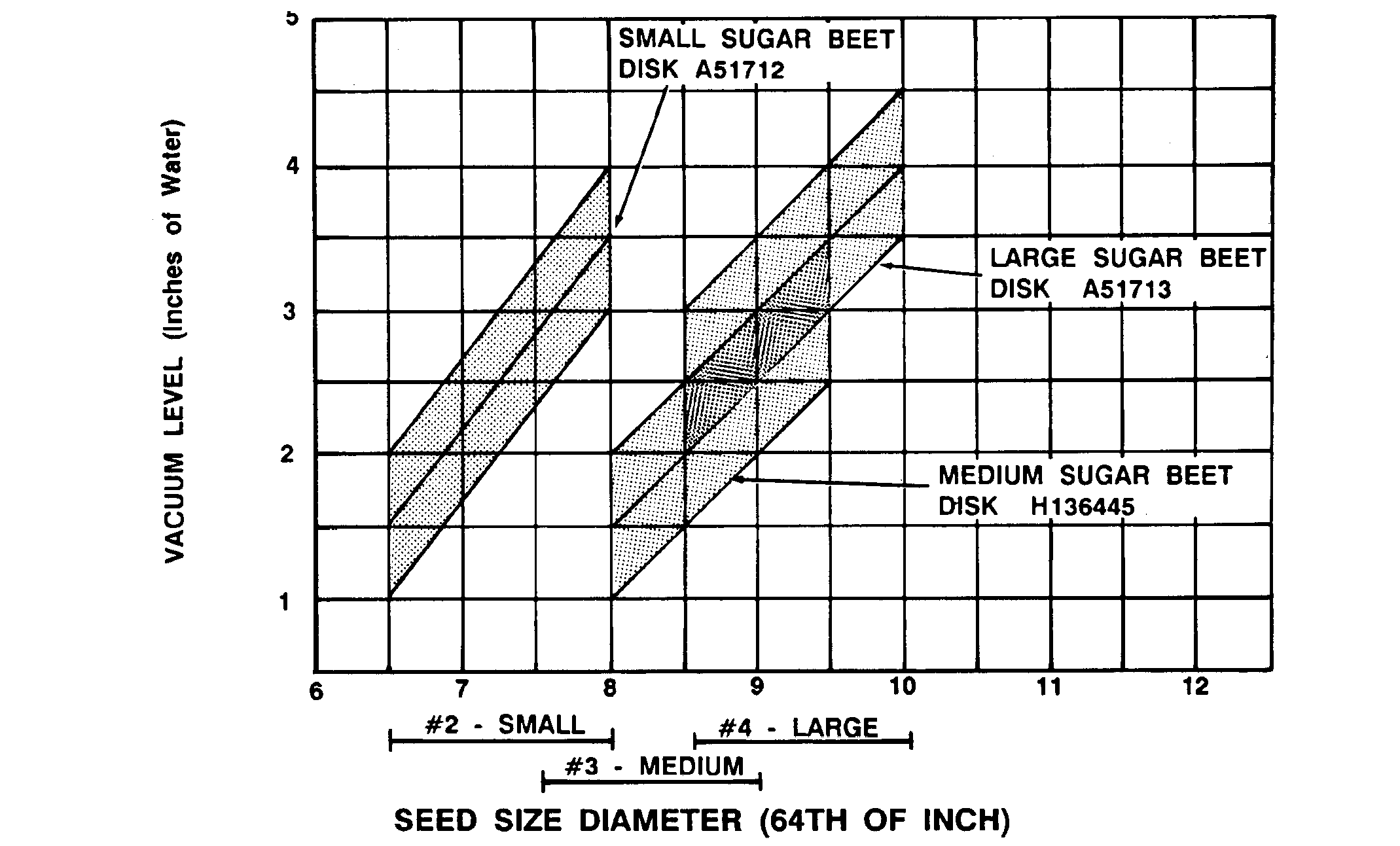

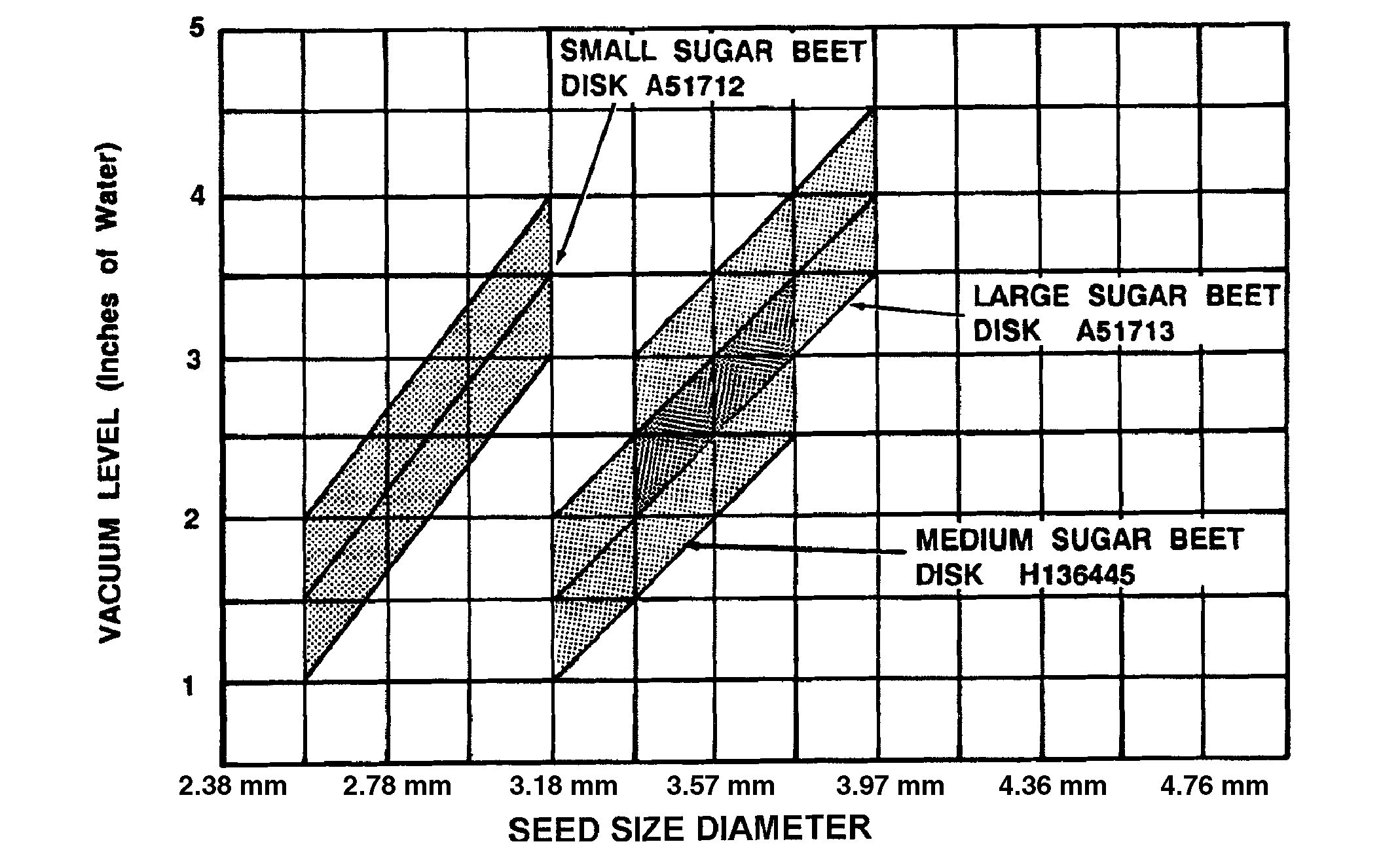

IMPORTANT: The proper vacuum level must be calculated for each sugar-beet seed size.

EXAMPLE: If bag label indicates medium seed (size 7.5/64 in. to 9/64 in. diameter) (size 2.98 mm to 3.57

mm in diameter). Vacuum level should be a range of between 1.5 in. to 2.5 in. when using Medium Sugar Beet Disk.
