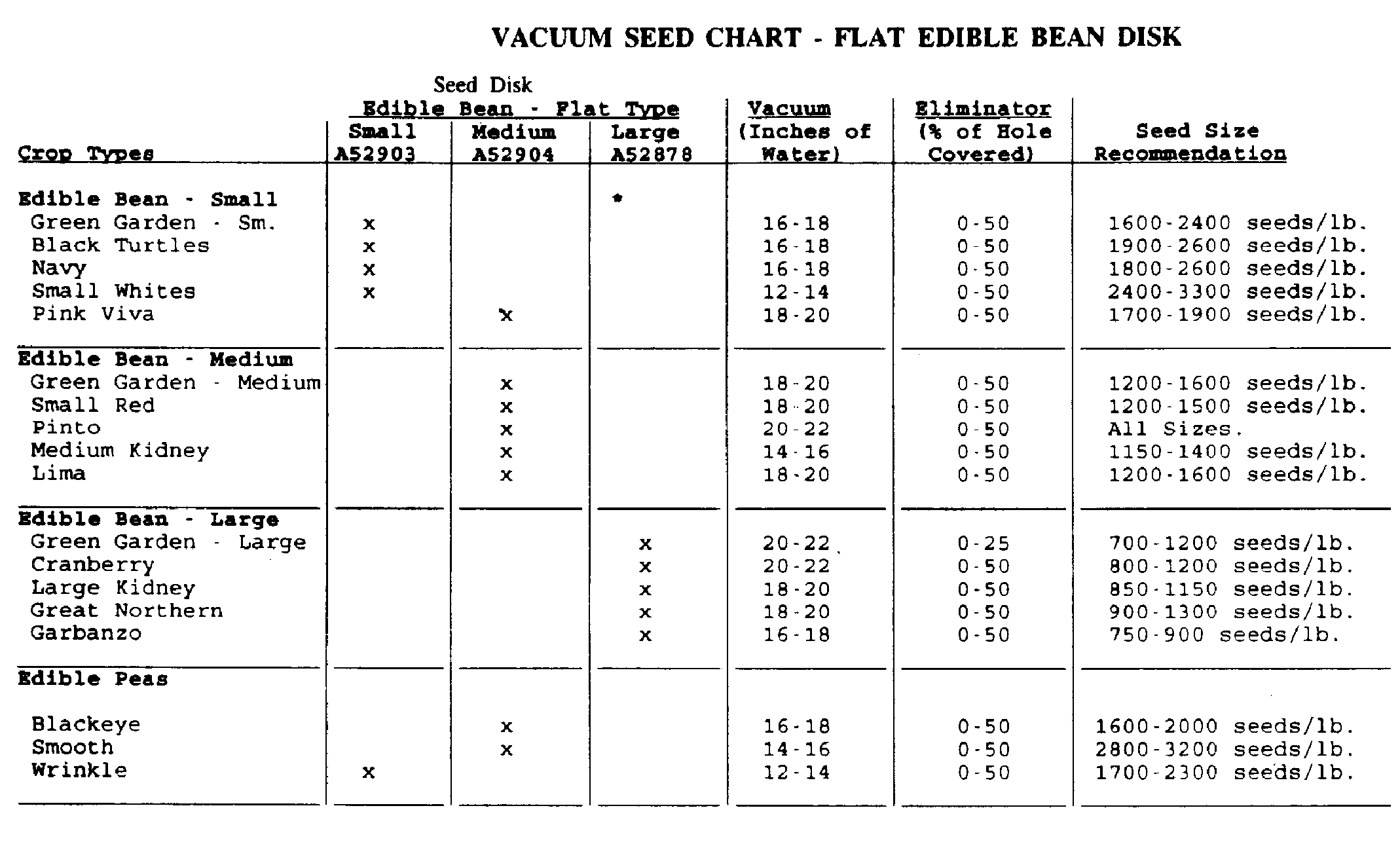

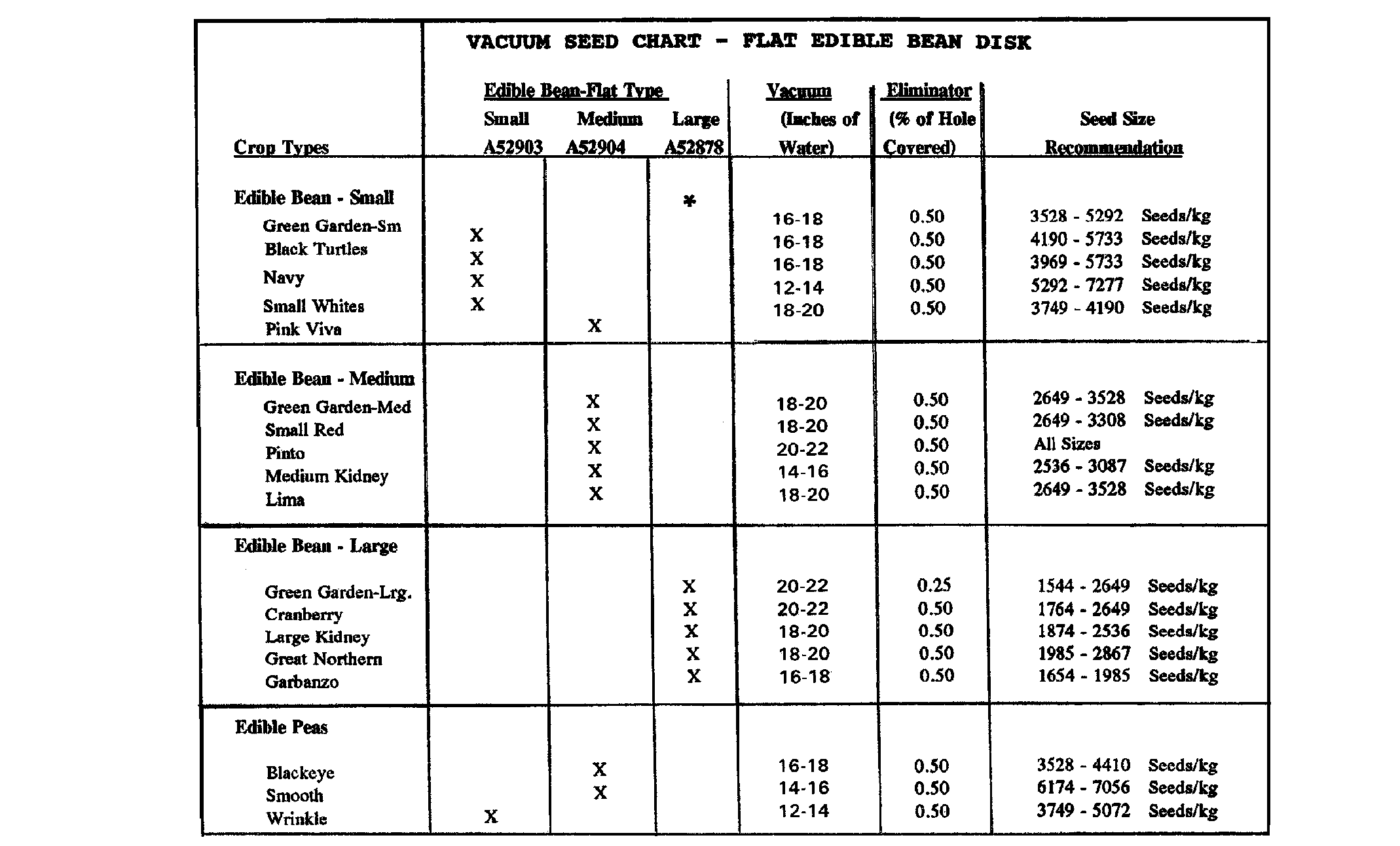

Vacuum Level Seed Chart-Flat Edible-Bean Disk
|
|
AG,OUO6074,1222 -19-04AUG00-1/2 |
|
NOTE: To maintain vacuum levels when using flat edible-bean disk, do not exceed eight row units per blower motor. Due to differences in seed sizes and shapes within a seed variety, actual populations will vary at the same vacuum level. Vacuum levels in the Vacuum Level |
Seed Chart-Flat Edible Bean Disk, are a starting point and may be adjusted up or down to improve population.
Order the Flat Edible-Bean Vacuum Gauge (AA38407) through your John Deere dealer. |
AG,OUO6074,1222 -19-04AUG00-2/2 |
