Unit Mounted Coulter

The unit mounted coulter can be used to assist TRU-VEE ™ opener to penetrate in tough soil conditions and to cut or displace residue commonly found in reduced tillage conditions.

The coulter blade penetration depth is controlled with opener gauge wheels and weight adjustment.

Planting unit down force springs are recommended with this attachment.

TRU-VEE is a trademark of Deere & Company

AG,OUO6074,1286 -19-04AUG00-1/3

causym CAUTION: Avoid crushing injury or death from a falling implement. Before performing any service or adjustments under a raised machine:

Shift tractor to "Park" or set the parking brake, stop engine and remove the key.

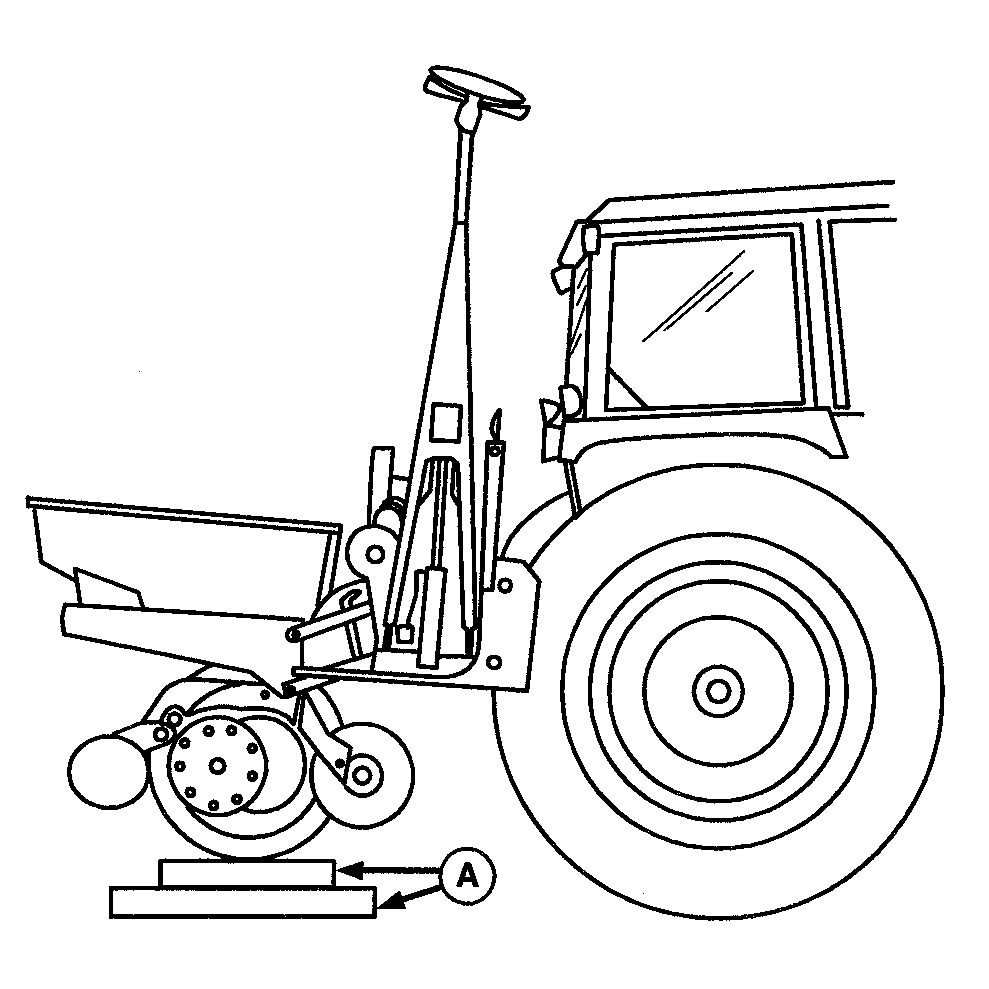

causym CAUTION: Place support blocks (A) under gauge wheels. Lower implement onto blocks.

causym CAUTION: Coulter blades are very sharp. Use caution to avoid being cut.

IMPORTANT: Bottom edge of coulter blade should be approximately 10 mm (3/8 in.) above bottom edge of seed openers. (Check this dimension with machine in planting position on any level surface.) This dimension will minimize force required for penetration and help maintain a constant seed depth. In heavy straw, penetration and cutting action may be improved if bottom edge of coulter blade is positioned slightly below bottom edge of seed openers.

NOTE: Do not operate coulter deeper than seed opener.

To adjust unit mounted coulter, proceed as follows:

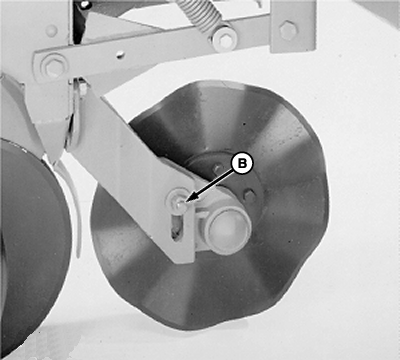

As blade wear occurs, loosen nut (B) and lower arm to next notch and tighten nut.

Coulter blade should be adjusted to align with TRU-VEE ™ opener.

Adjust coulter blade so it is directly in front of TRU-VEE ™ opener and is not running at an angle to direction of travel.


A-Support Blocks
B-Nut

A44347
A44888
A46921

TRU-VEE is a trademark of Deere & Company

AG,OUO6074,1286 -19-04AUG00-2/3

To align side-to-side, loosen cap screws (A), slide coulter and tighten cap screws.

If coulter blade is running at an angle different than the direction of travel, add washers as required between back surface of coulter casting and front of planting unit.


A-Cap Screw
