Seed Drive Mechanism Adjustment

It may be necessary to align sprockets with drive mechanism on meter.

AG,OUO6074,1365 -19-04AUG00-1/4

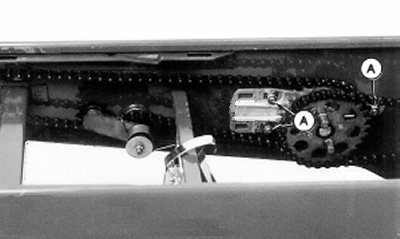

Loosen nuts (A) and adjust sprocket assembly so studs on sprocket align with paddles on meter drive.

Use a small mirror with hopper/meter in place to check alignment of flipper drive.

A-Nut
B-Slot

AG,OUO6074,1365 -19-04AUG00-2/4

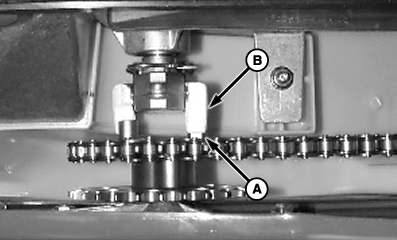

When meter drive is misaligned, double sprocket lugs (A) can be seen outside flipper drive tabs (B) as shown.

A-Lugs
B-Flipper Drive Tabs

AG,OUO6074,1365 -19-04AUG00-3/4

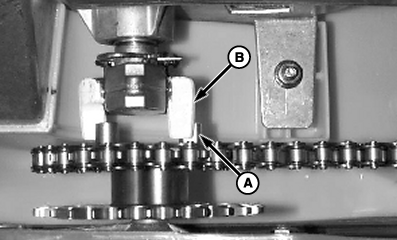

When meter drive is properly aligned, double sprocket lugs (A) and flipper drive tabs are in line as shown.

A-Lugs
B-Flipper Drive Tabs

AG,OUO6074,1365 -19-04AUG00-4/4
