Inspecting Vacuum Motor

NOTE: Excessive oil leakage may cause vacuum pump motor guard to become clogged. This may cause loss of vacuum.

This leakage will occur inside pump housing and can be seen on pump guard.

If necessary, clean pump guard. See CLEANING VACUUM PUMP MOTOR GUARD in Service-As Required section.

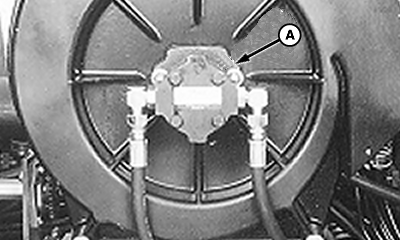

Check vacuum motor (A) for oil leaks.

A small amount of oil leakage is acceptable. If leakage occurs on motor housing at (A), check for loose hardware on motor or loose fittings. If oil leakage is excessive or if vacuum levels can not be maintained, order Vacuum Motor Repair Kit AA36389 from your John Deere dealer. Installation instructions are provided with kit.

A-Motor

AG,OUO6074,1376 -19-04AUG00-1/1
