Feed-Cup Metering Unit

IMPORTANT: Store feed-cup metering assemblies in a clean, dry place while not in use.

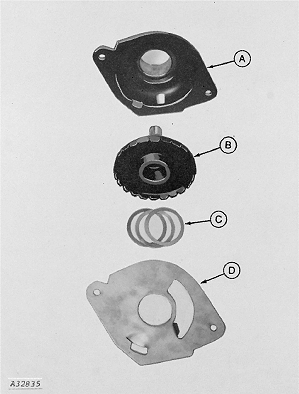

The feed-cup metering unit consists of a feed-cup housing (A), feed cup (B), washer shims (C) (used with low-rate sorghum metering units only) and corresponding seed guide (D).

Use feed-cup metering units to plant the following types of seed:

  • Soybeans
  • Sorghum, Regular-Rate 1
  • Sorghum, Low-Rate 1
  • Edible Beans 1
  • Acid-Delinted Cotton 1


A-Cup Housing
B-Feed-Cup
C-Washer Shims
D-Seed Guide

A32835

1 Available through service parts only.

AG,OUO6074,439 -19-03APR00-1/1
