Low-Rate Sorghum Feed-Cup¹

IMPORTANT: Store feed-cup metering assemblies in a clean, dry place while they are not in use.

NOTE: Three washer shims must be used with low-rate feed-cup. Do not operate without all three shims.

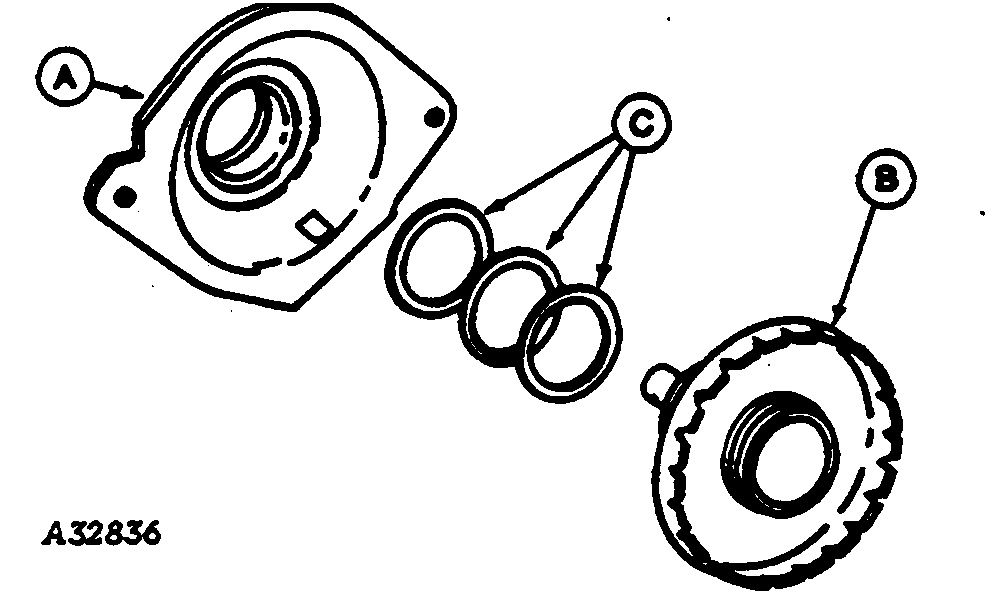

For small seed or if population is high, use three washer shims (C) between feed-cup (B) and housing (A) only.

A-Housing
B-Feed-Cup
C-Washer Shims

AG,OUO6074,441 -19-03APR00-1/6

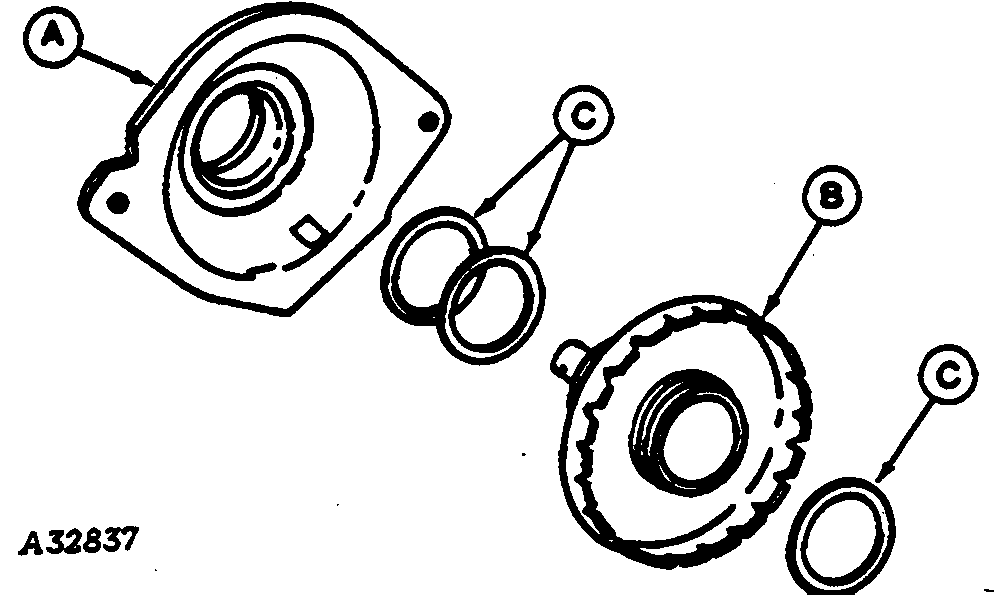

For medium size seed, use two washer shims (C) between feed-cup (B) and housing (A) and one washer shim (C) between feed-cup and seed guide.

A-Housing
B-Feed-Cup
C-Washer Shims

AG,OUO6074,441 -19-03APR00-2/6

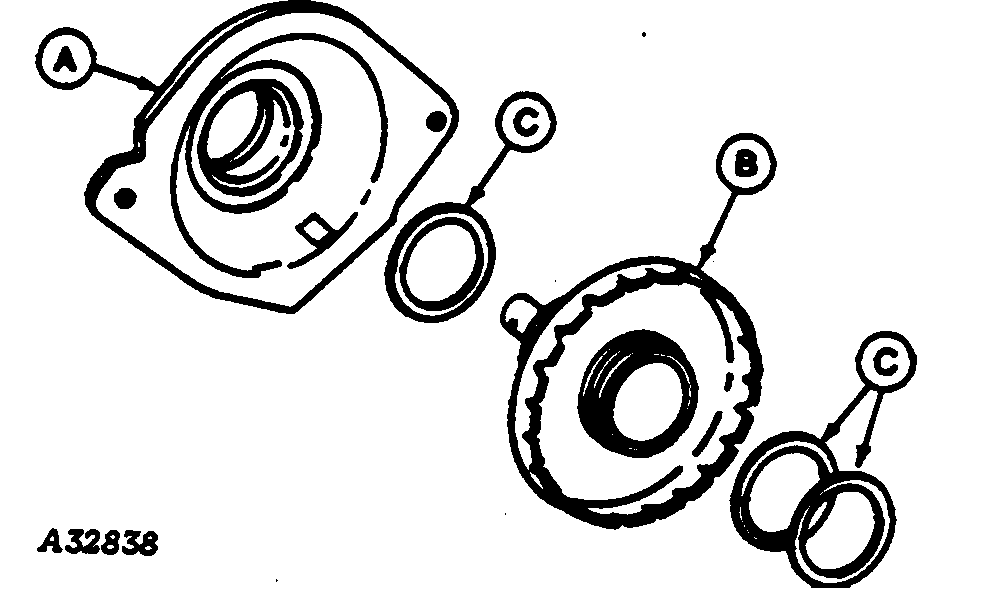

For larger seed, use one washer shim (C) between feed-cup (B) and housing (A) and two washer shims (C) between feed-cup and seed guide.

A-Housing
B-Feed-Cup
C-Washer Shim

AG,OUO6074,441 -19-03APR00-3/6

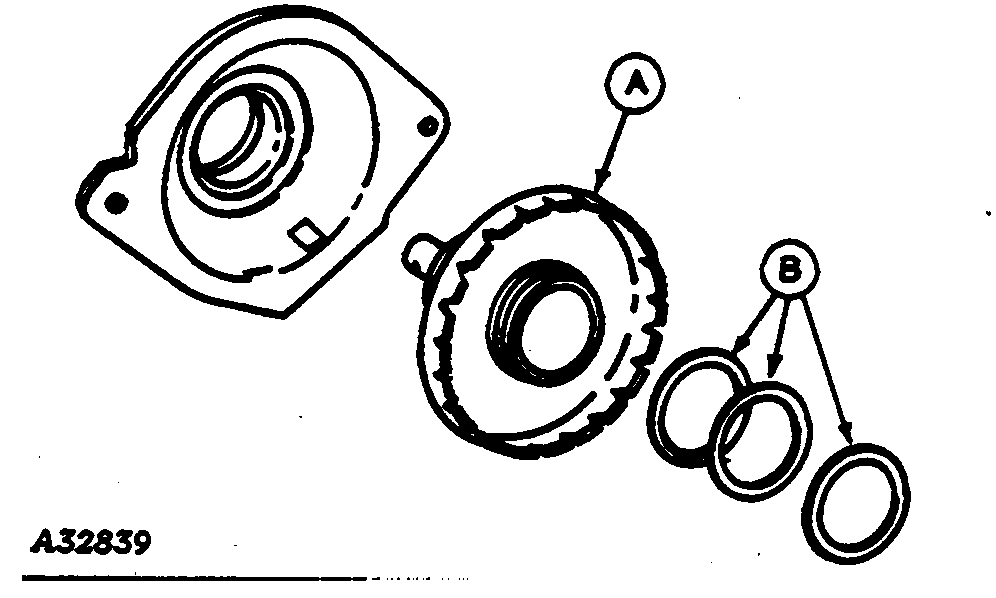

For large seed use three washer shims (B) between feed-cup (A) and seed guide.

A-Feed-Cup
B-Washer Shims

AG,OUO6074,441 -19-03APR00-4/6

Assemble feed-cup housing with low-rate sorghum feed cup and correct number of washer shims. Install seed guide on feed-cup adapter so it seats properly on mounting studs (A). Align notch (B) in seed guide with projection on adapter.

A-Studs
B-Notch

AG,OUO6074,441 -19-03APR00-5/6

NOTE: Aligning notch must be positioned correctly so feed-cup housing seats properly.

Attach feed-cup and housing to adapter with wing nuts (A).

Wipe off feed-cup bushings periodically to help reduce wear.

A-Wing Nut

AG,OUO6074,441 -19-03APR00-6/6
