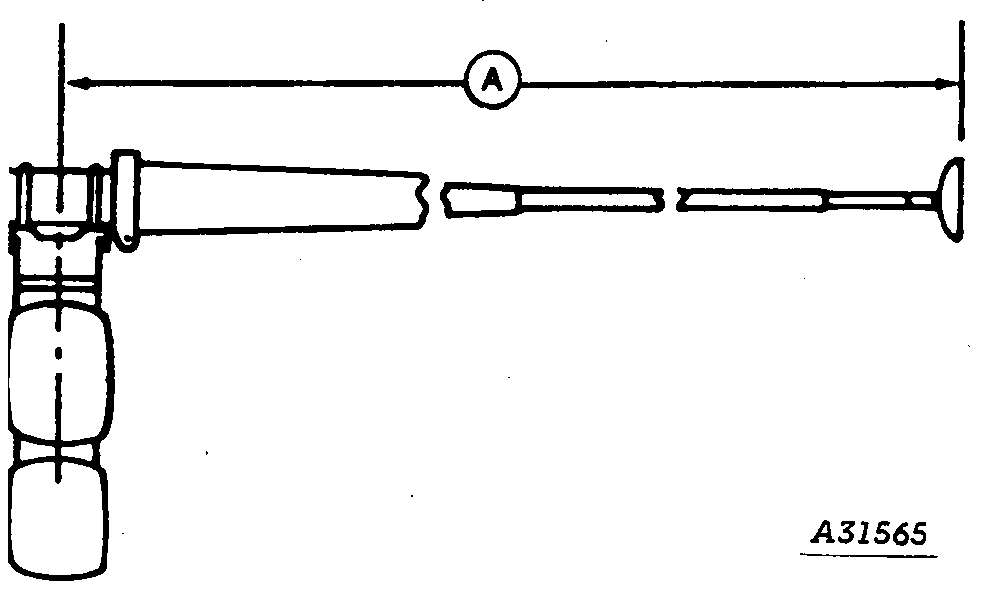

Adjusting Marker Length-1700 MachinesNOTE: Dimension (A) is measured from seed disk openers on outer planting unit to marker disk blade. Lower marker and loosen set screws on outer marker arm. Set marker disk to dimension (A) from the chart below. Tighten set screws and jam nuts. This is an approximate dimension and should be checked in the field. |
|
| 1700 Machines-Marker Length | ||
|---|---|---|
| Number of Rows | Row Spacing | Dimension "A" |
| 4-Row Wide | 91 cm (36 in.) | 2286 mm (90 in.) |
| 4-Row Wide | 97 cm (38 in.) | 2413 mm (95 in.) |
| 4-Row Wide | 102 cm (40 in.) | 2540 mm (100 in.) |
| 6-Row Narrow | 70 cm (27.5 in.) | 2445 mm (96.25 in.) |
| 6-Row Narrow | 76 cm (30 in.) | 2667 mm (105 in.) |
| 6-Row Wide and Skip-Row | 91 cm (36 in.) | 3200 mm (126 in.) |
| 6-Row Wide and Skip-Row | 97 cm (38 in.) | 3378 mm (133 in.) |
| 6-Row Wide and Skip-Row | 102 cm (40 in.) | 3556 mm (140 in.) |
| 8-Row Narrow | 70 cm (27.5 in.) | 3143 mm (123.75 in.) |
| 8-Row Narrow | 76 cm (30 in.) | 3429 mm (135 in.) |
| 8-Row Wide and Skip-Row | 91 cm (36 in.) | 4115 mm (162 in.) |
| 8-Row Wide and Skip-Row | 97 cm (38 in.) | 4345 mm (171 in.) |
| 8-Row Wide and Skip-Row | 102 cm (40 in.) | 4572 mm (180 in.) |
| 10-Row Narrow | 76 cm (30 in.) | 4191 mm (165 in.) |
