OMA69662: 1700 and 1730 MAXEMERGE® Plus Integral Planters, Block File: OUO1074_00000A2_19

In-Furrow Press Wheel

1. To raise or lower in-furrow press wheel, proceed as follows:

OUO1074,00000A2 -19-08FEB01-1/3

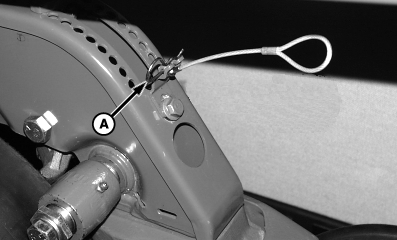

2. To raise in-furrow press wheel, remove spring-locking pin (A) and place cable stop in slot on lock plate. Install spring-locking pin.

A-Spring-Locking Pin

Raised Position

OUO1074,00000A2 -19-08FEB01-2/3

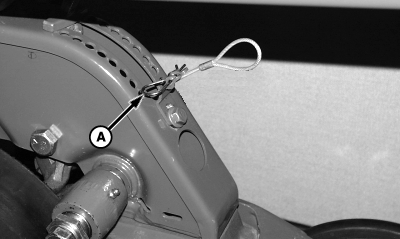

3. To lower in-furrow press wheel, remove spring-locking pin (A) and lift cable stop out of slot on lock plate and let in-furrow press wheel lower. Install spring locking pin (A).

A-Spring-Locking Pin

Lowered Position
