Meter Setup for Corn

NOTE: If sweet corn double eliminator has been installed, loosen set screw in cam nut and rotate cam nut to move tip of eliminator AWAY from center of meter housing as far as possible.

Move vacuum meter baffle tab (A) to upper position (C).

Use regular (long) vacuum meter brush brush.

TALC APPLICATION

IMPORTANT: Some insecticide-treated seed is coated with commercially applied talc. It is important that the recommended amount of talc be added in addition to talc already on the seed.

Talc Application
Hopper Size Amount of Talc
58L (1.6 bu) 120 mL (1/2 cup)
106L (3 bu) 240 mL (1 cup)



For vacuum level, see VACUUM LEVEL FOR CORN USING H136478, A43215, OR A50617 SEED DISKS in Operating the Vacuum Meter section.

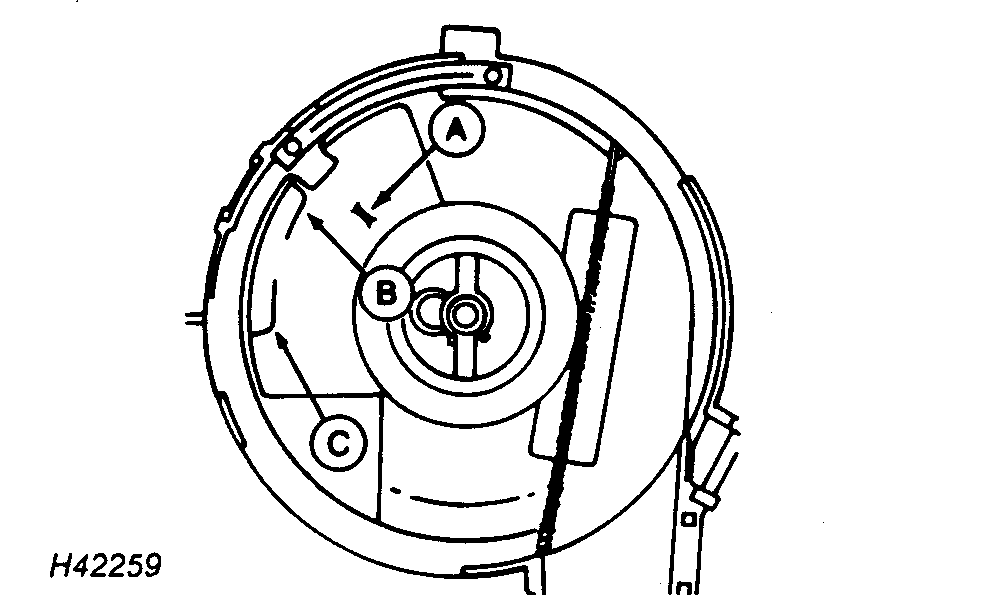

H42259

Upper and Lower Baffle Position

A47009

Regular (Long) Brush


A-Tab
B-Lower Position
C-Upper Position

OUO1074,0000125 -19-15MAR01-1/1
