Lubrication-Every 10 Hours or Daily
A38464

Drive Gauge Wheel
A38363

Gauge Wheels

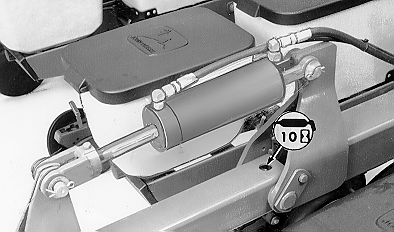

A41163

Lift Assist Wheel Pivot Two Places

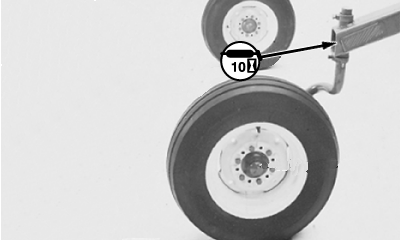

A47070

Lift Assist Wheel
A38722

Arched Lift-Assist Wheel

OUO1074,0000179 -19-22MAR01-1/2

Fill crankcase of pump with TY6296 SAE 80/90 W EP gear oil or equivalent at port (A). Fill crankcase level to check port (B). Check level daily thereafter.


A-Port
B-Port

A35437

Piston Pump

A35436

Piston Pump Shafts

OUO1074,0000179 -19-22MAR01-2/2
