Connecting Hydraulic Hoses-Advantage Series Row-Crop Tractors

CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

IMPORTANT: Variable rate drive is not compatible with Advantage Series tractors.

1. LIFT ASSIST HOSES: If machine is equipped with lift assist hoses, connect lift assist hoses (A) to SCV I. Set flow control valve to full open "RABBIT" position.

2. INDEPENDENT MARKERS: If machine is equipped with independent markers, connect marker hoses (B) to SCV II. Set flow control valve to desired rate to keep control lever in detent position.

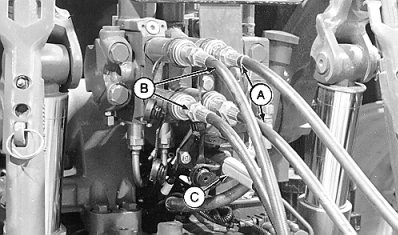

A-Lift Assist Hoses
B-Marker Hoses
C-Lamp Harness

OUO1074,0000182 -19-23MAR01-1/1
