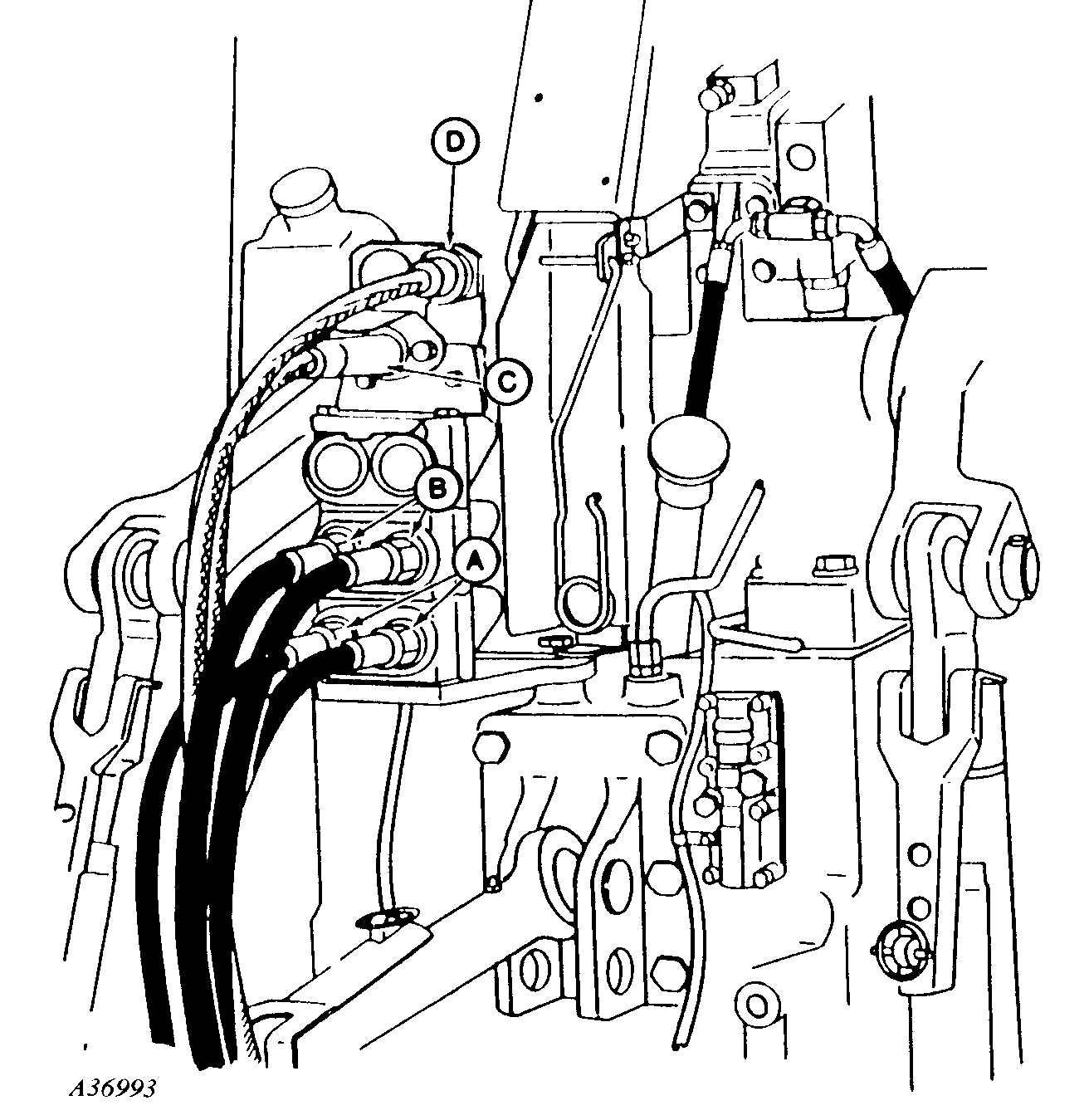

A-Lift Assist Hoses

B-Marker Hoses

C-7-Pin Connector

D-Wiring Harness

CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age, and exposure. Check hoses regularly. Replace damaged hoses.

NOTE: If there are not enough SCV couplers available, a power beyond is available. See you tractor dealer for information.

1. LIFT ASSIST HOSES: If machine is equipped with lift assist hoses, connect lift assist hoses (A) to SCV I. Set flow control valve to full open "RABBIT" position.

2. INDEPENDENT MARKERS: If machine is equipped with independent markers, connect marker hoses (B) to SCV II. Set flow control valve to desired rate to keep control lever in detent position.

3. VARIABLE RATE DRIVE: If machine is equipped with variable rate drive, see your SEEDSTAR ® Seed Monitor and Variable Rate Drive Operator's Manual.

SEEDSTAR is a trademark of Deere & Company

OUO1074,0000183 -19-23MAR01-1/1
