Using No Mast

NO MAST:

The mast must NOT be used when BOTH of the following conditions are present.

  • A machine equipped with lift assist wheels.
  • A machine with drive-gauge wheels mounted to the FRONT of the main frame.

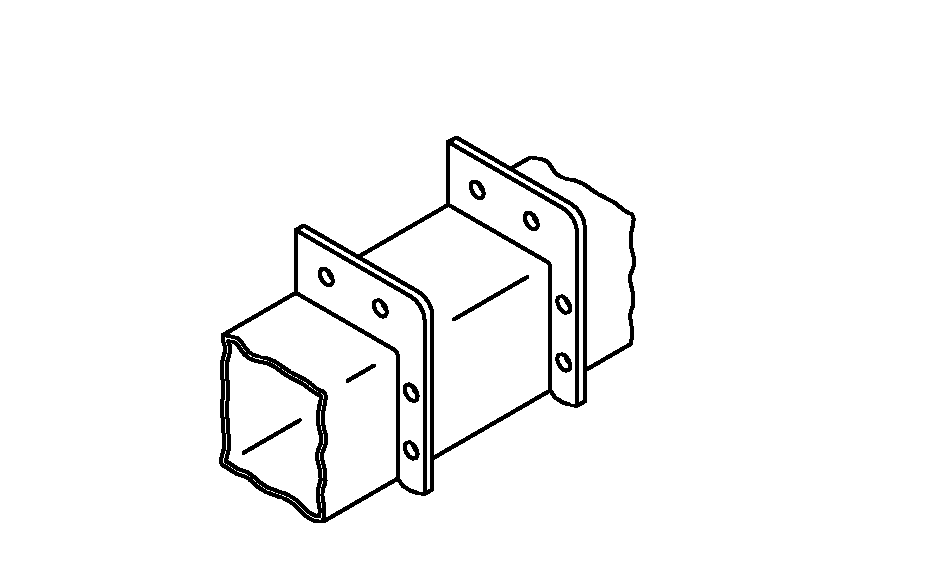

The quick-coupler will function the same as a pivoting center mast when pin is removed.

A47316

OUO1074,0000186 -19-23MAR01-1/1
