Connecting Hydraulic Hoses-8000 Series Row-Crop Tractors

CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

NOTE: If there are not enough SCV couplers, a power beyond kit is available. See your John Deere dealer.

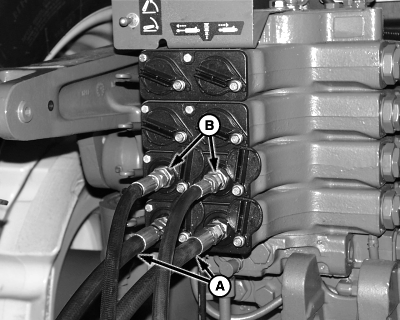

LIFT-ASSIST HOSES: If machine is equipped with lift-assist hoses, connect lift-assist hoses (A) to SCV I.

INDEPENDENT MARKERS: If machine is equipped with independent markers, connect marker hoses (B) to SCV II.

VARIABLE RATE DRIVE: If equipped with variable rate drive, see your SEEDSTAR ® Seed Monitor and Variable Rate Drive Operator's Manual.

A-Lift-Assist Hoses
B-Marker Hoses

SEEDSTAR is a trademark of Deere & Company

OUO1074,0000187 -19-23MAR01-1/1
