Link Lengths

IMPORTANT: For added safety, always use a quick-coupler to make attaching and detaching a one-person operation.

NOTE: On integral planters, adjust the left to right lift link to level planter from side to side. Adjust lift-assist wheels if equipped.

1. Set lift links (A) as required to provide adequate transport clearance and to level planter side-to-side.

2. Adjust the center link (B) until quick-coupler (C) is vertical when in planting position, and planter is level fore/aft.

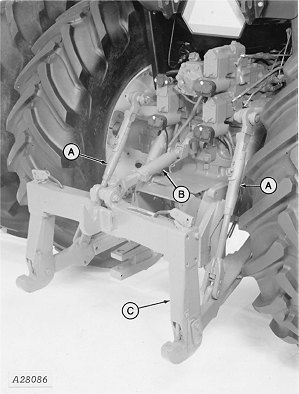

A-Lift Lengths
B-Center Link
C-Quick-Coupler
