Changing Input Sprocket Combinations

Consult appropriate planting rate chart to determine desired sprocket combinations.

OUO1074,00001B6 -19-09APR01-1/5

1. Remove spring (A) from chain tightener.

A-Spring

OUO1074,00001B6 -19-09APR01-2/5

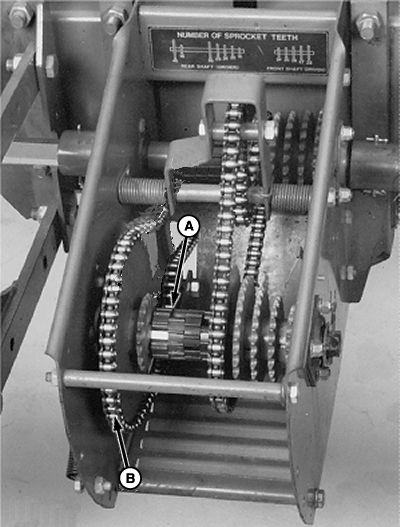

2. Remove required number of rubber sprocket spacers (A).

3. Remove chain (B) from input sprocket.

A-Rubber Sprocket Spacers
B-Chain

OUO1074,00001B6 -19-09APR01-3/5

4. Align desired input sprocket with chain tightener sprockets (A).

5. Install chain on sprocket and rubber sprocket spacers (B) on shaft.

A-Sprockets
B-Rubber Sprocket Spacers

OUO1074,00001B6 -19-09APR01-4/5

6. If chain is aligned on high-range input sprocket, locate spring in hole (A) of chain tightener. Arm (B) must point rearward.

7. If chain is installed on low-range input sprocket, locate spring in hole (C) of chain tightener. Arm (D) must point forward.

A-Hole
B-Arm
C-Hole
D-Arm

OUO1074,00001B6 -19-09APR01-5/5
