Changing Planting Rate Sprocket Combinations

Consult appropriate planting rate chart to determine desired sprocket combinations.

OUO1074,00001B7 -19-09APR01-1/3

1. Remove retaining hook (A) from storage position.

A-Hook

OUO1074,00001B7 -19-09APR01-2/3

2. Pull chain tightener (A) downward and attach hook (B) to tightener.

3. Remove required number of rubber sprocket spacers (C).

4. Remove chain from sprockets. Slide desired driver and driven sprockets (D) and (E) into alignment with chain tightener and replace chain.

5. Remove hook from chain tightener. Reposition hook in storage position by pressing it into clip (F).

6. Replace rubber sprocket spacers on upper and lower shafts.

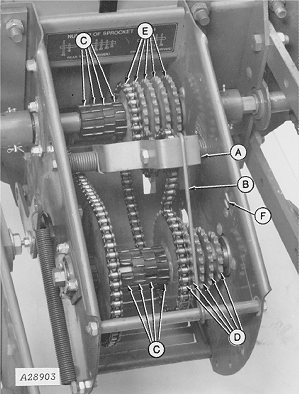

A-Chain Tightener
B-Retaining Hook
C-Rubber Sprocket Spacers
D-Driver Sprockets
E-Driven Sprockets
F-Clip
