Connecting Hydraulic Hoses-6000 Series Row-Crop Tractors

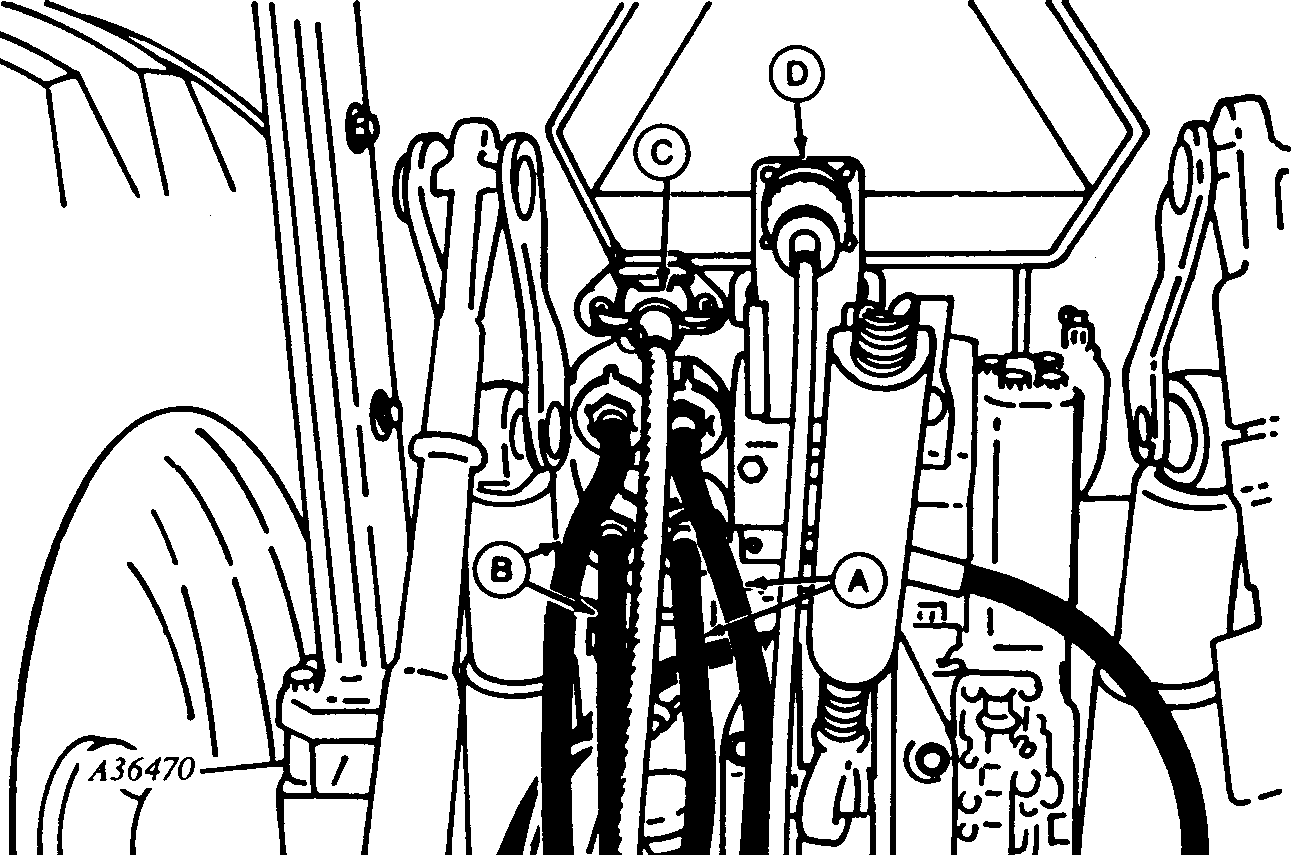

A36470


A-Machine Lift Hoses


B-Independent Marker Hoses


C-Seven Pin Connector


D-Monitor Harness Connector

causym CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

NOTE: If there are not enough SCV couplers, a power beyond kit is available. See your John Deere dealer.

1. LIFT-ASSIST HOSES: If machine is equipped with lift-assist wheels, connect lift-assist hoses (A) to

SCV I. Set flow control valve to full open "RABBIT" position.

2. INDEPENDENT MARKERS: If equipped with independent markers, connect marker hoses (B) to SCV II.

3. VARIABLE RATE DRIVE: If equipped with variable rate drive, see your SEEDSTAR ® Seed Monitor and Variable Rate Drive Operator's Manual for hook-up information.

SEEDSTAR is a trademark of Deere & Company

OUO1074,00001C2 -19-11APR01-1/1
