Using Rigid Mast-Pin and Spacer

IMPORTANT: Lift-assist wheel attachments cannot be used with rigid center mast.

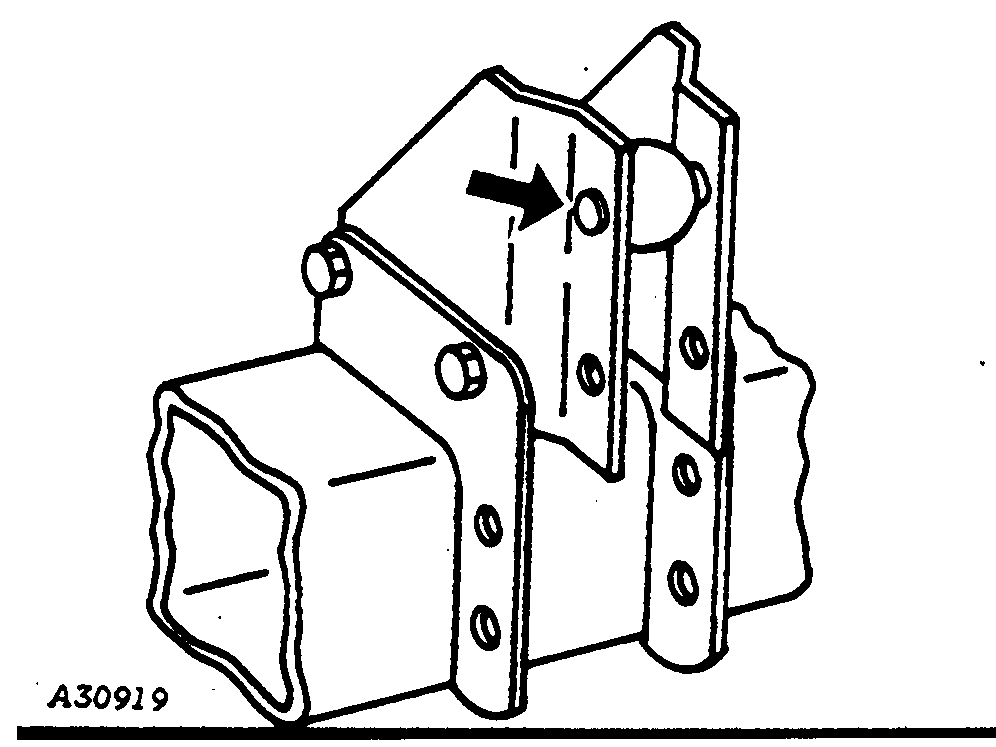

Pin and ball positioned for Category 2 WITHOUT Quick-Coupler.

A30919

OUO6074,0000191 -19-19JAN01-1/3

Pin and spacer positioned for Category 2 WITH Quick-Coupler.

A30920

OUO6074,0000191 -19-19JAN01-2/3

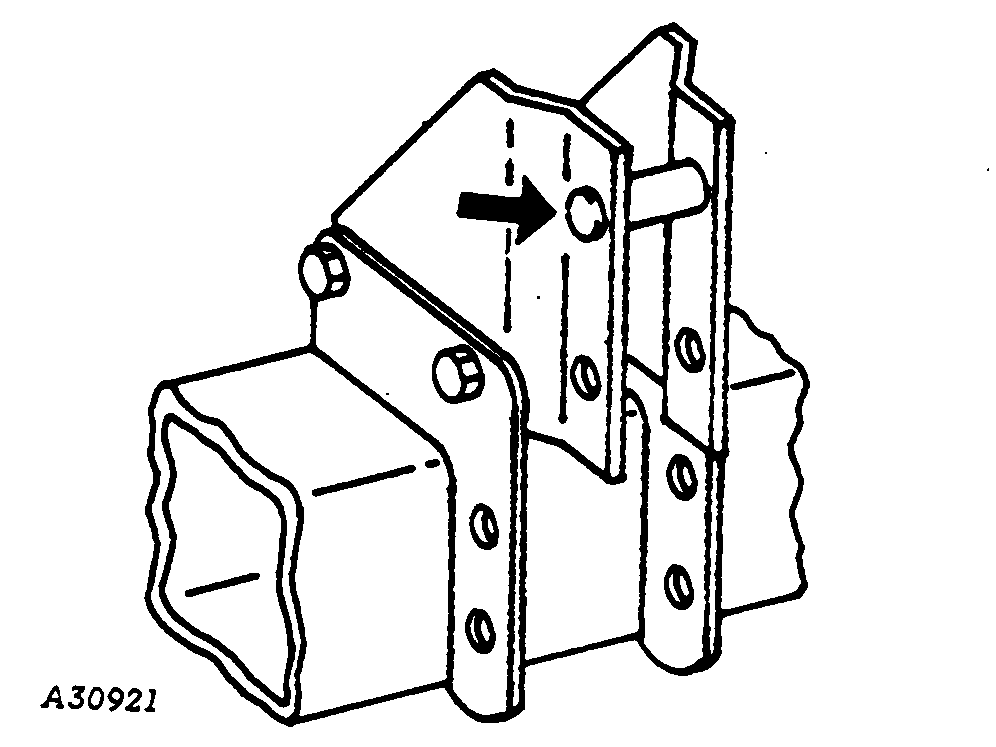

Pin and spacer positioned for Category 3 and 3N with Quick-Coupler or Category 3N/2 Hitch without Quick-Coupler.

A30921

OUO6074,0000191 -19-19JAN01-3/3
