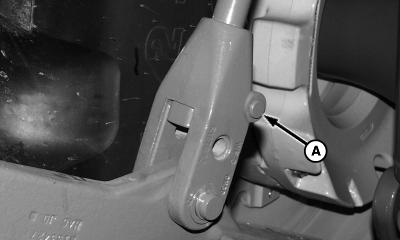

Place left-hand and right-hand lift link pins (A) in upper holes to allow either draft link to raise slightly as machine follows ground contour.

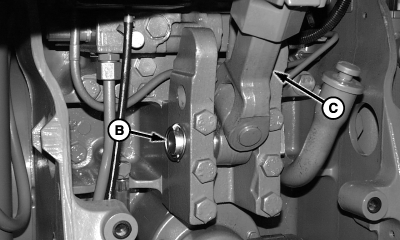

Place pin (B) and center link (C) in lower hole.
A-Lift Link Pins B-Pin C-Center Link
