Preparing for Transport

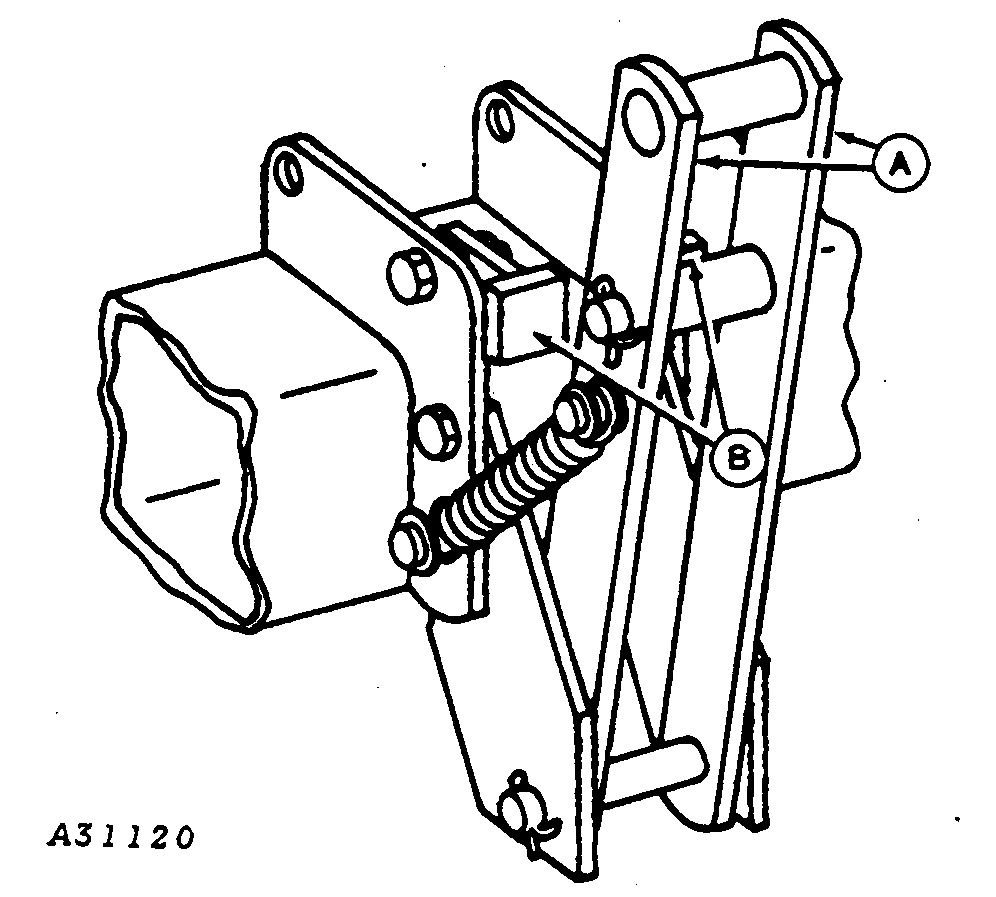

IMPORTANT: Damage to the machine may occur if mast links (A) contact stops (B) during transport.

Before transporting 4-row, 6-row, and 8-row machines equipped with pivoting center mast, see LEVELING-MACHINES EQUIPPED WITH PIVOTING CENTER MAST in Operating The Machine section, for instructions on how to properly adjust machine for correct operation of pivoting center mast.

A-Mast Links
B-Stops

OUO6074,00001A6 -19-24JAN01-1/1
