Marker Float Range
|
|

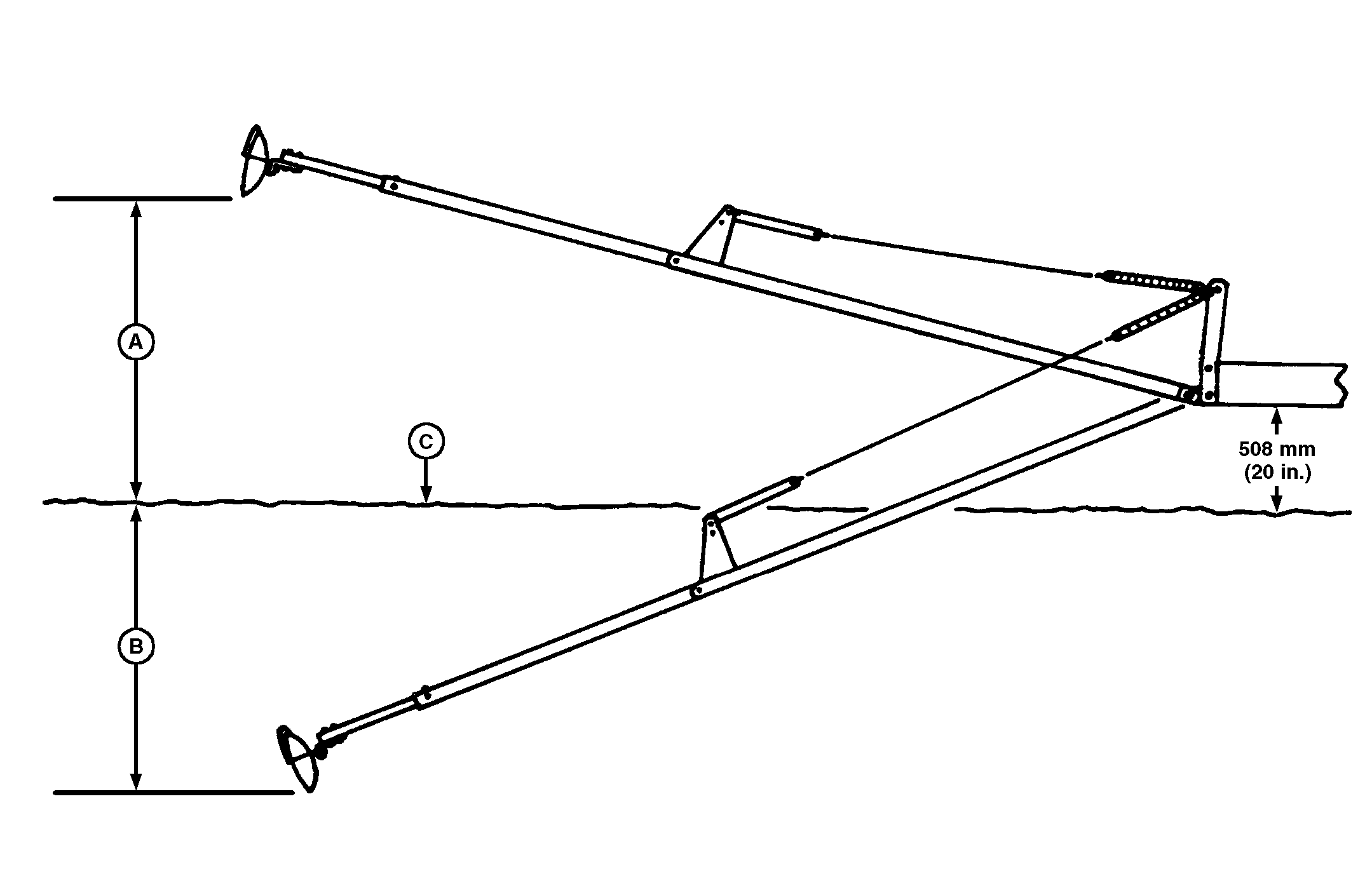

Marker has an approximate float range (see chart below) which should not be exceeded when planting near drainage ditches or hillsides. Exceeding this float range can result in damage to the marker inner arm. If this range must be exceeded, raise the marker by operating the marker remote cylinder operating lever. |
OUO6074,00001AE -19-25JAN01-1/2 |
| 1700 Machine | |||
|---|---|---|---|
| Machine Size | Row Spacing | Dimension "A" | Dimension "B" |
| 4-Row Wide | 91 cm (36 in.) | 609 mm (24 in.) | 254 mm (10 in.) |
| 4-Row Wide | 97 cm (38 in.) | 661 mm (26 in.) | 305 mm (12 in.) |
| 4-Row Wide | 102 cm (40 in.) | 686 mm (27 in.) | 381 mm (15 in.) |
| 6-Row Narrow | 70 cm (27.5 in.) | 686 mm (27 in.) | 381 mm (15 in.) |
| 6-Row Narrow | 76 cm (30 in.) | 686 mm (27 in.) | 381 mm (15 in.) |
| 6-Row Wide | 91 cm (36 in.) | 737 mm (29 in.) | 457 mm (18 in.) |
| 6-Row Wide | 97 cm (38 in.) | 788 mm (31 in.) | 559 mm (22 in.) |
| 6-Row Wide | 102 cm (40 in.) | 838 mm (33 in.) | 635 mm (25 in.) |
| 8-Row Narrow | 70 cm (27.5 in.) | 838 mm (33 in.) | 635 mm (25 in.) |
| 8-Row Narrow | 76 cm (30 in.) | 838 mm (33 in.) | 635 mm (25 in.) |
| 8-Row Wide | 91 cm (36 in.) | 889 mm (35 in.) | 737 mm (29 in.) |
| 8-Row Wide | 97 cm (38 in.) | 965 mm (38 in.) | 864 mm (34 in.) |
| 8-Row Wide | 102 cm (40 in.) | 1016 mm (40 in.) | 978 mm (38.5 in.) |
| 1730 Machine | ||||
|---|---|---|---|---|
| Base Machine Size | Number of Rows | Row Spacing | Dimension "A" | Dimension "B" |
| 11-Row, 38 cm (15 in.) | 6 | 56 cm (22 in.) | 587 mm (27.05 in.) | 379 mm (14.91 in.) |
| 11-Row, 38 cm (15 in.) | 6 | 76 cm (30 in.) | 587 mm (27.05 in.) | 379 mm (14.91 in.) |
| 11-Row, 38 cm (15 in.) | 11 | 38 cm (15 in.) | 626 mm (24.63 in.) | 267 mm (10.52 in.) |
| 12-Row, 56 cm (22 in.) | 12 | 56 cm (22 in.) | 785 mm (31 in.) | 556 mm (22 in.) |
| 15-Row, 38 cm (15 in.) | 6 | 91 cm (36 in.) | 731 mm (28.80 in.) | 459 mm (18.06 in.) |
| 15-Row, 38 cm (15 in.) | 6 | 97 cm (38 in.) | 781 mm (30.76 in.) | 549 mm (21.61 in.) |
| 15-Row, 38 cm (15 in.) | 6 | 102 cm (40 in.) | 831 mm (32.23 in.) | 639 mm (25.17 in.) |
| 15-Row, 38 cm (15 in.) | 11 | 46 cm (18 in.) | 731 mm (28.18 in.) | 459 mm (18.12 in.) |
| 15-Row, 38 cm (15 in.) | 11 | 48 cm (19 in.) | 781 mm (30.76 in.) | 549 mm (21.61 in.) |
| 15-Row, 38 cm (15 in.) | 11 | 51 cm (20 in.) | 748 mm (29.45 in.) | 489 mm (19.24 in.) |
| 15-Row, 38 cm (30 in.) | 8 | 56 cm (22 in. ) | 831 mm (32.73 in.) | 639 mm (25.17 in.) |
| 15-Row, 38 cm (15 in.) | 8 | 76 cm (30 in.) | 831 mm (32.73 in.) | 639 mm (25.17 in.) |
| 15-Row, 38 cm (15 in.) | 15 | 38 cm (15 in.) | 769 mm (30.27 in.) | 526 mm (20.72 in.) |
| 15-Row, 51 cm (20 in.) | 8 | 91 cm (36 in.) | 886 mm (34.87 in.) | 737 mm (29.03 in.) |
| 15-Row, 51 cm (20 in.) | 8 | 97 cm (38 in.) | 953 mm (37.51 in.) | 859 mm (33.80 in.) |
| 15-Row, 51 cm (20 in.) | 8 | 102 cm (40 in.) | 1020 mm (40.16 in.) | 980 mm (38.58 in.) |
| 15-Row, 51 cm (20 in.) | 15 | 46 cm (18 in.) | 886 mm (34.87 in.) | 737 mm (29.03 in.) |
| 15-Row, 51 cm (20 in.) | 15 | 74 cm (29 in.) | 953 mm (37.51 in.) | 859 mm (33.80 in.) |
| 15-Row, 51 cm (20 in.) | 15 | 51 cm (20 in.) | 936 mm (26.80 in.) | 828 mm (32.61 in.) |
OUO6074,00001AE -19-25JAN01-2/2 |
