Raising and Lowering Automatic Markers

IMPORTANT: DO NOT put SCV lever into FLOAT when raising and lowering. The correct procedure for raising and lowering is to POWER completely UP or DOWN.

NOTE: Automatic markers are only possible if machine is equipped with lift assist wheels.

Markers automatically raise and lower with machine frame. When marker SCV lever (A) is moved rearward, marker will raise. When SCV lever is moved forward, marker will lower. Markers will operate alternately each time lever is cycled fully to both raise and lower marker.

The marker alternating valve (B) automatically shifts oil flow (so opposite marker can be lowered) each time lever is moved from lower to raise position (even when lever is moved only briefly). Both markers can be lowered (as when starting in the middle of a field) by lowering one marker; then quickly cycling lever (without raising that marker) so second marker will lower.

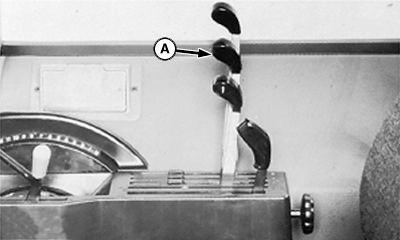

A-Marker SCV Lever

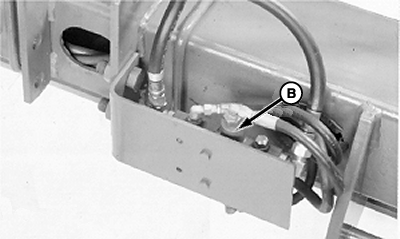

B-Marker Alternating Valve
