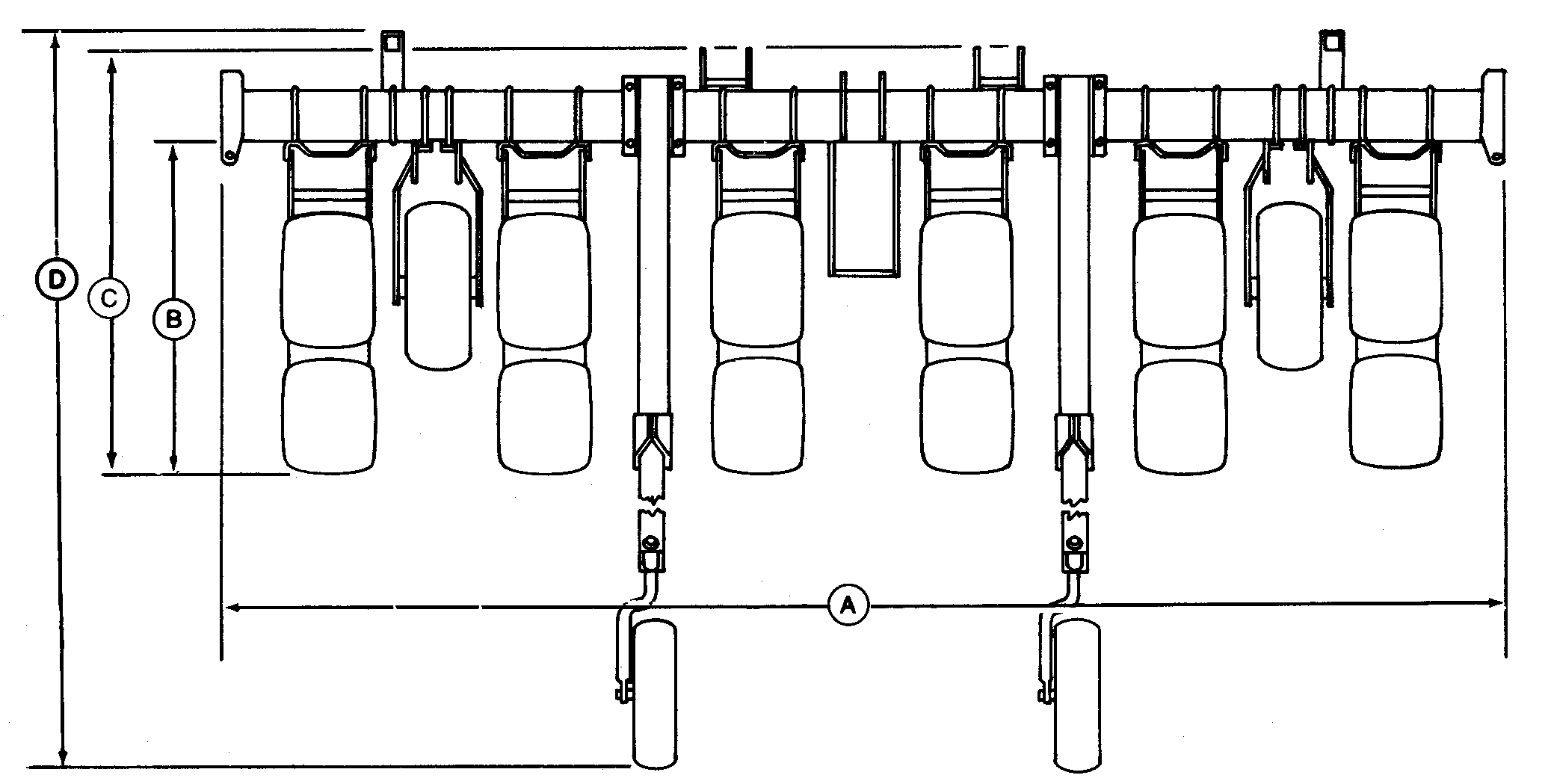

1700 Machines
|
|
|
| Model | (A) Without Marker | (A) With Marker In Transport | (B) | (C) | (D) |
|---|---|---|---|---|---|
| 4-Row | 3607 mm (142 in.) | 4013 mm (158 in.) | 1422 mm (56 in.) | 1778 mm (70 in.) | 3378 mm (133 in.) |
| 6-Row 70 cm (27.5 in.) | 4572 mm (180 in.) | 7036 mm (277 in.) | 1422 mm (56 in.) | 1778 mm (70 in.) | 3378 mm (133 in.) |
| 6-Row 91 cm to 102 cm (36 in. to 40 in.) | 4572 mm (180 in.) | 7036 mm (277 in.) | 1422 mm (56 in.) | 1778 mm (70 in.) | 3378 mm (133 in.) |
| 8-Row 70 cm (27.5 in.) | 5842 mm (230 in.) | 7036 mm (277 in.) | 1422 mm (56 in.) | 1778 mm (70 in.) | 3378 mm (133 in.) |
| 8-Row 76 cm (30 in.) | 5842 mm (230 in.) | 7036 mm (277 in.) | 1422 mm (56 in.) | 1778 mm (70 in.) | 3378 mm (133 in.) |
| 8-Row 91 cm to 102 cm (36 in. to 40 in.) | 8128 mm (320 in.) | 8788 mm (346 in.) | 1422 mm (56 in.) | 1778 mm (70 in.) | 3378 mm (133 in.) |
OUO6074,00001C1 -19-26JAN01-1/1 |
