1730 Machines
|
|
|

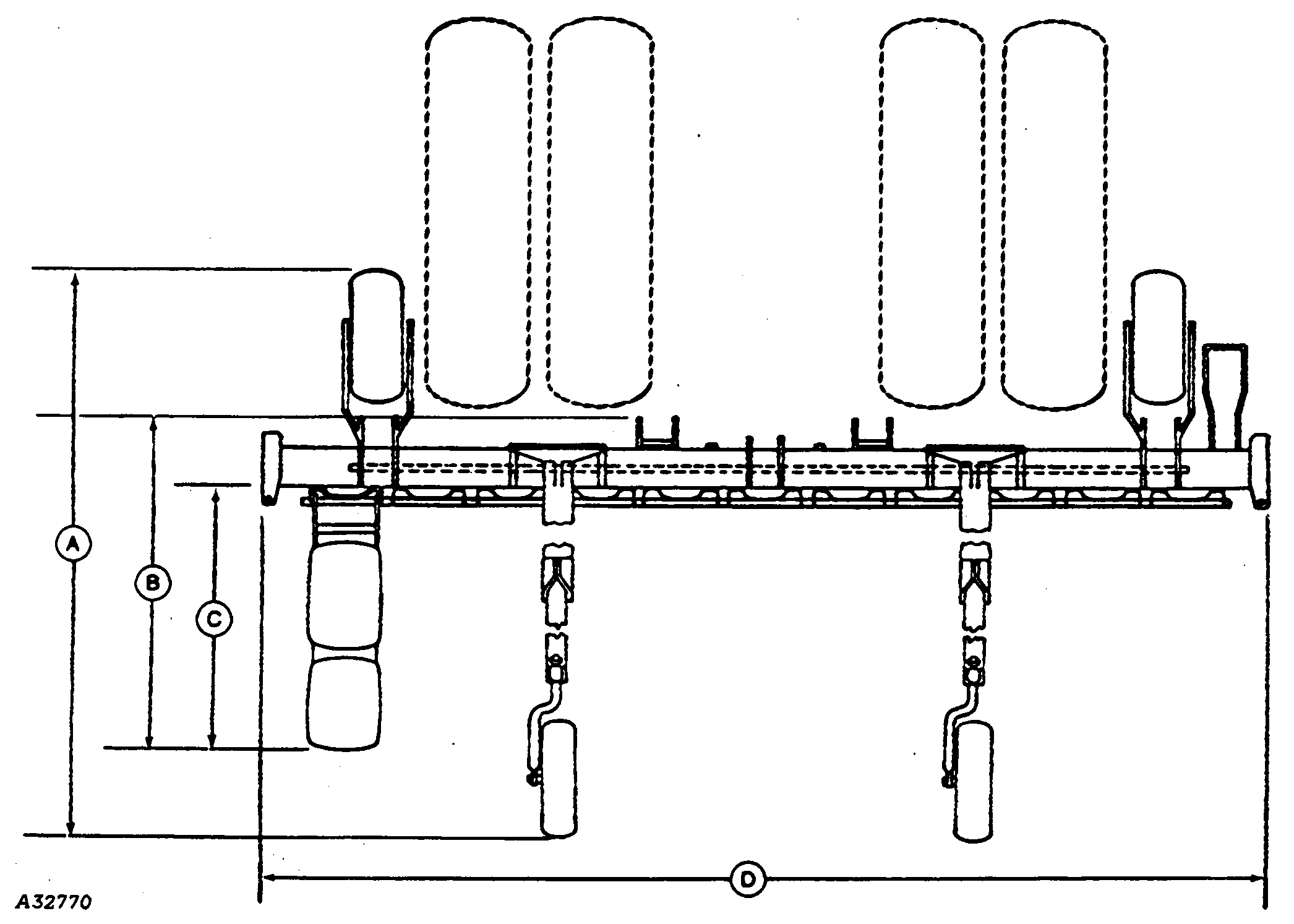

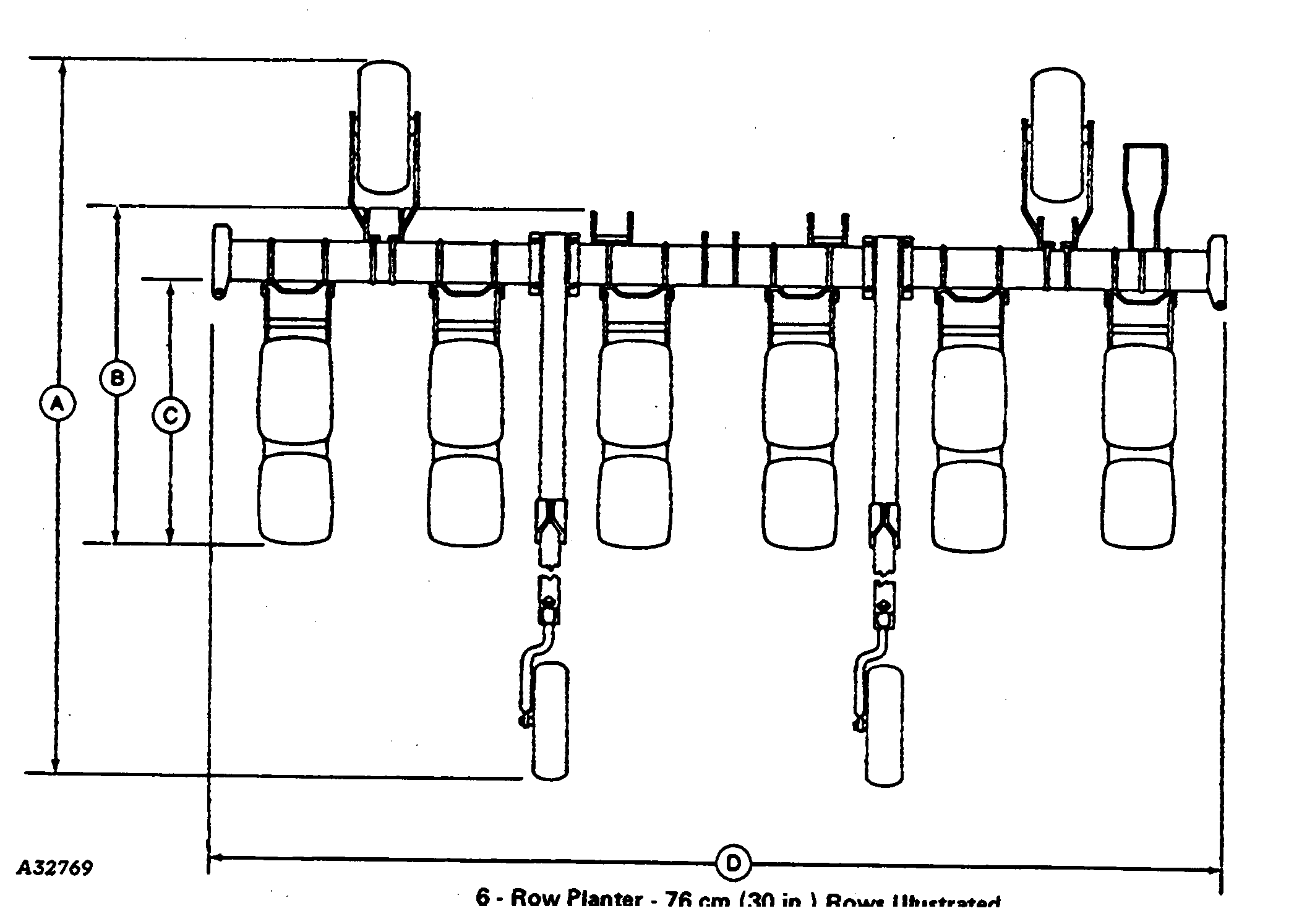

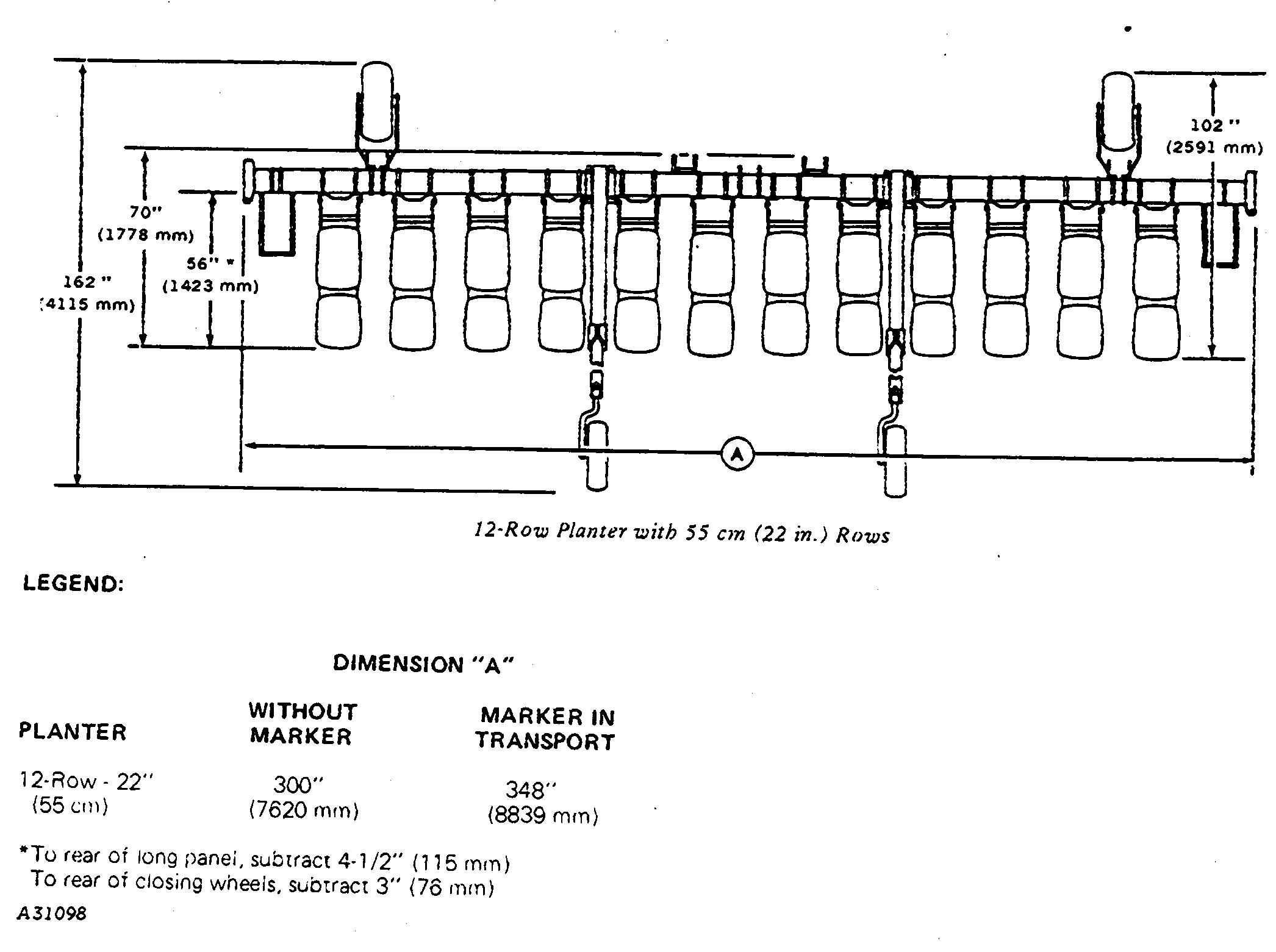

| Model | (A) | (B) | (C) | (D) Without Marker | (D) Marker in Transport |
|---|---|---|---|---|---|
| 6-Row Narrow | 4115 mm (162 in.) | 1778 mm (70 in.) | 1422 mm (56 in.) | 4572 mm (180 in.) | 4978 mm (196 in.) |
| 6-Row Wide | 4115 mm (162 in.) | 1778 mm (70 in.) | 1422 mm (56 in.) | 5842 mm (230 in.) | 7036 mm (277 in.) |
| 6-Row Narrow | 4115 mm (162 in.) | 1778 mm (70 in.) | 1422 mm (56 in.) | 5842 mm (230 in.) | 7036 mm (277 in.) |
| 6-Row Wide | 4115 mm (162 in.) | 1778 mm (70 in.) | 1422 mm (56 in.) | 7620 mm (300 in.) | 8788 mm (346 in.) |
|
To rear of long panel, subtract 4-1/2 in. (115 mm)
|
OUO6074,00001C2 -19-26JAN01-1/3 |
|
|
|
when moving or operating this machine near electric lines to avoid contact.
|
CAUTION:
Serious injury or death can result from contact with electric lines. Use care
| Model | (A) | (B) | (C) | (D) Without Marker | (D) Marker in Transport |
|---|---|---|---|---|---|
| 9-Row with Tire Skips and 11-Row 38 mm (15 in.) | 4.11 m (162 in.) | 2.59 m (102 in.) | 1.42 m (56 in.) | 4.57 m (180 in.) | 4.98 m (196 in.) |
| 9-Row with Tire Skips and 11-Row 91 cm to 102 cm (36 in. to 40 in.) | 4115 mm (162 in.) | 2591 mm (102 in.) | 1422 mm (56 in.) | 5842 mm (230 in.) | 7036 mm (277 in.) |
| 13-Row with Tire Skips and 15-Row 38 cm (15 in.) | 4115 mm (162 in.) | 2591 mm (102 in.) | 1422 mm (56 in.) | 5842 mm (230 in.) | 7036 mm (277 in.) |
| 13-Row with Tire Skips and 15-Row 91 cm to 102 cm (36 in. to 40 in.) | 4115 mm (162 in.) | 2591 mm (102 in.) | 1422 mm (56 in.) | 7620 mm (300 in.) | 8788 mm (346 in.) |
|
To rear of long panel, subtract 4-1/2 in. (115 mm) |
To rear of closing wheels, subtract 3 in. (76 mm) |
