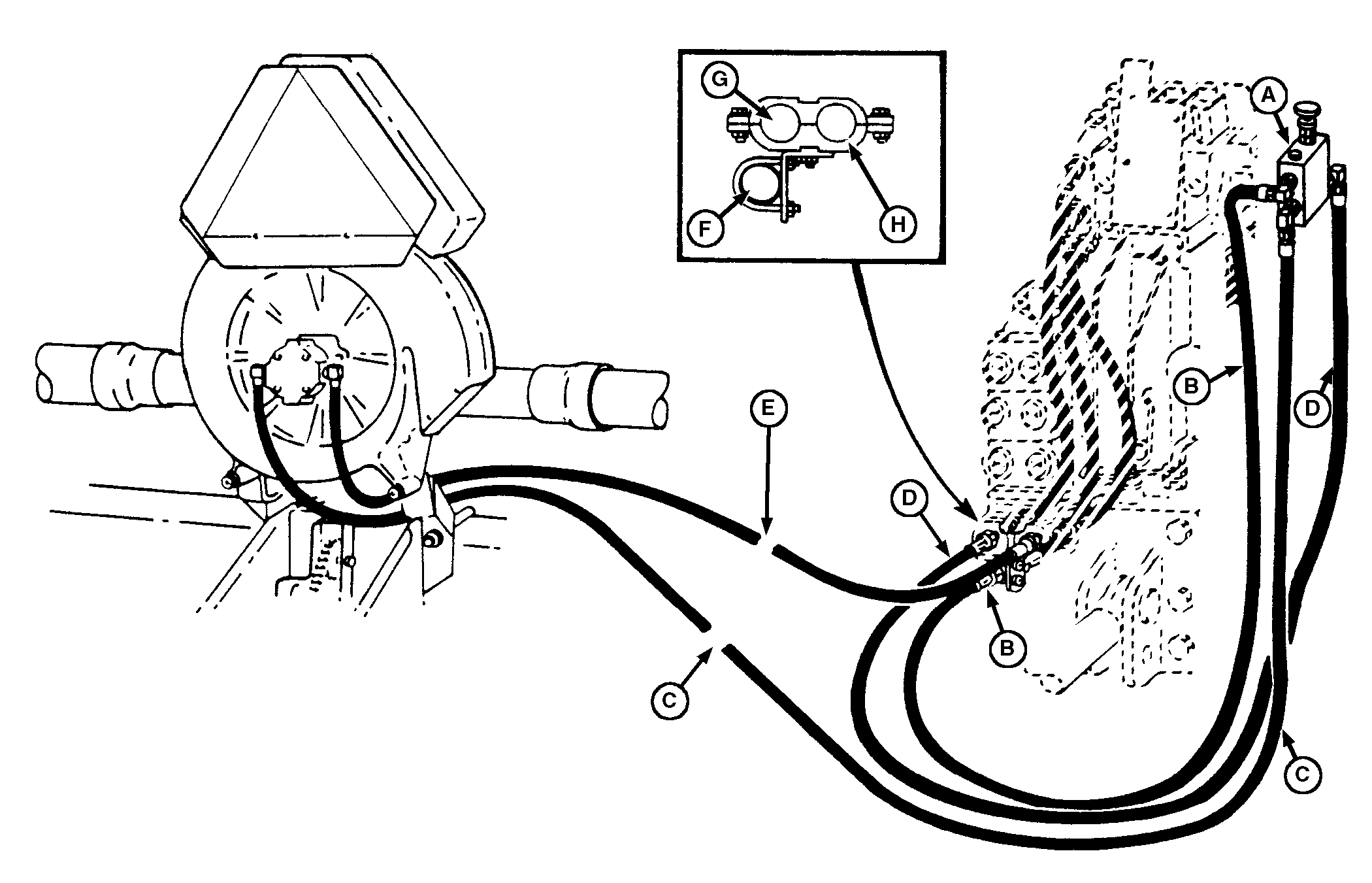

A-Planter Flow Control Valve
B-Load Sensing Hose

C-Regulated Pressure Hose
D-Pressure Hose

E-Motor Return Hose
F-Load Sensing Port

G-Pressure Port
H-Return Port

IMPORTANT: Damage to blower motor will occur if hoses are connected incorrectly. Check hydraulic connections before operating vacuum motor. See CHECKING HYDRAULIC CONNECTIONS in Preparing the Vacuum Meter section.

NOTE: For non John Deere tractors, see dealer for vacuum motor hook-up.

1. Mount planter flow control valve (A) assembly on cab.

IMPORTANT: Regulated pressure hose (C) must be connected to left-hand (INLET) side of vacuum motor.

2. Connect load sensing hose (B) to load sensing port (F).

3. Connect pressure hose (D) to pressure port (G).

4. Connect motor return hose (E) to return port (H).

The planter flow control valve (A) will be used to control vacuum level.

VACUMETER is a trademark of Deere & Company

OUO6074,0000287 -19-15MAR01-1/1
