Connecting Disk Lowering Solenoid Wiring-730 Air Disk Drill

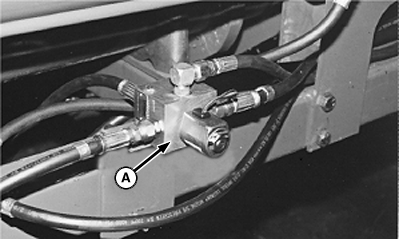

Disk lowering solenoid (A) operates to extend cylinders and lower disks into the ground. Operating voltage is supplied to the solenoid by the cart controller through operation of the remote seeder switch in the same way as the cart's main drive clutch.

NOTE: Harness lead is labeled "SOL LOCK".

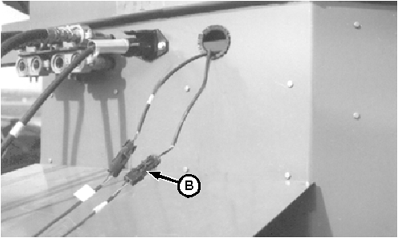

Attach disk lowering solenoid harness to "SOL LOCK" connection (B) at the rear of the cart.

A-Disk Lowering Solenoid
B-Connection

AG,OUO6023,1008 -19-21JUL00-1/1
