Connecting Optional TouchSet™ Depth Control Wiring-1810 Seeding Tool

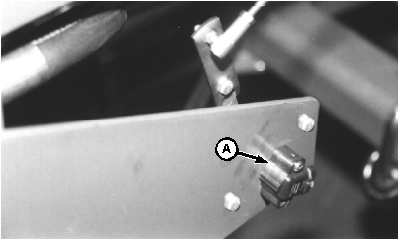

Potentiometer (A) signals frame position to the tractor's electronic controller.

With Tow-Between Cart:

Attach potentiometer wiring harness to extension harness connector (B) at the rear of the cart.

A-Potentiometer
B-Extension Harness Connector

TouchSet is a trademark of Deere & Company.

AG,OUO6023,1010 -19-21JUL00-1/2

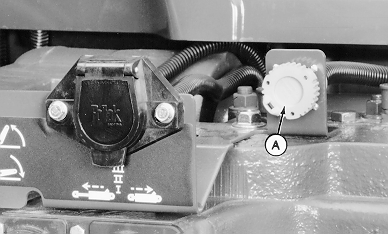

Attach TouchSet ™ depth-control wiring harness (tow-behind cart) or extension harness (tow-between cart) to 9-terminal connector (A) at rear of tractor.

A-9-Terminal Connector

TouchSet is a trademark of Deere & Company.

AG,OUO6023,1010 -19-21JUL00-2/2
