Detaching Tow-Behind Cart From Seeding Tool

CAUTION: To help prevent personal injury caused by unexpected movement of the machine:

Park machine on level surface.

Block tires.

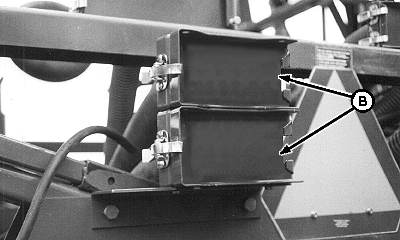

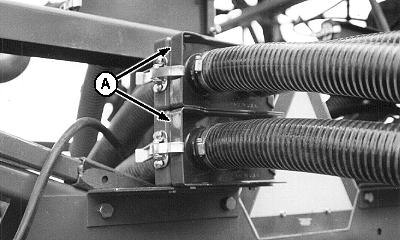

1. Open clips to disconnect air hose connectors (A). Install coupler cover plates (B). If cover plates are not available, plug tubes with rags to keep debris and rodents out.

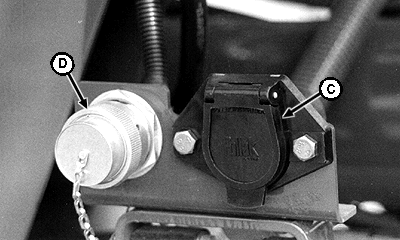

2. Disconnect cart clutch and light power harness and controller power and communications cable from connectors (C and D). Install plugs and caps.

3. Disconnect any other cables or harnesses attached at the rear of the seeding tool, including:

· Remote Seeder Switch Cable (if equipped).

A-Air Hose Connectors
B-Cover Plates
C-Connector
D-Connector

AG,OUO6023,1016 -19-21JUL00-1/5

CAUTION: Serious personal injury can result if you attempt to disconnect hydraulic hoses under pressure.

· Mechanical SCV Controls: Shut off tractor engine and work levers back and forth to relieve pressure before disconnecting hoses.

· Electro/Hydraulic SCV Controls: Place SCV controls in "float" position to relieve pressure before disconnecting hoses.

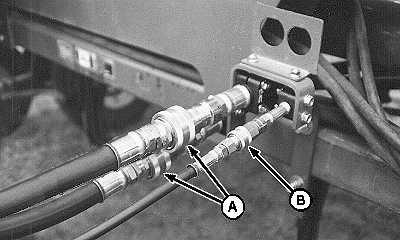

4. Disconnect fan/auger hoses (A) and fan motor case drain hose (B) from couplers. Install plugs and caps.

A-Fan/Auger Hoses
B-Fan Motor Case Drain Hose

AG,OUO6023,1016 -19-21JUL00-2/5

5. Remove pins (B) and move storage stands (A) from transport/field position to storage position. Place tube ends in contact with ground and retain with L-pins and quick-lock pins.

A-Storage Stands
B-Pins

AG,OUO6023,1016 -19-21JUL00-3/5

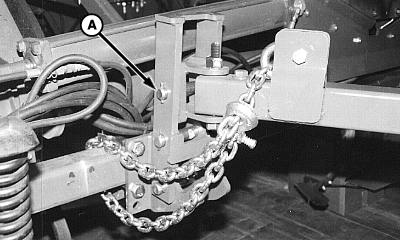

6. At both hitch connections, open hook latches and remove safety chains (A) from rear bar of tool.

A-Safety Chains

AG,OUO6023,1016 -19-21JUL00-4/5

7. At both hitch connections, remove hitch tube-to-arm pins (A).

8. Drive tractor and seeding tool away from air cart.

A-Pins
