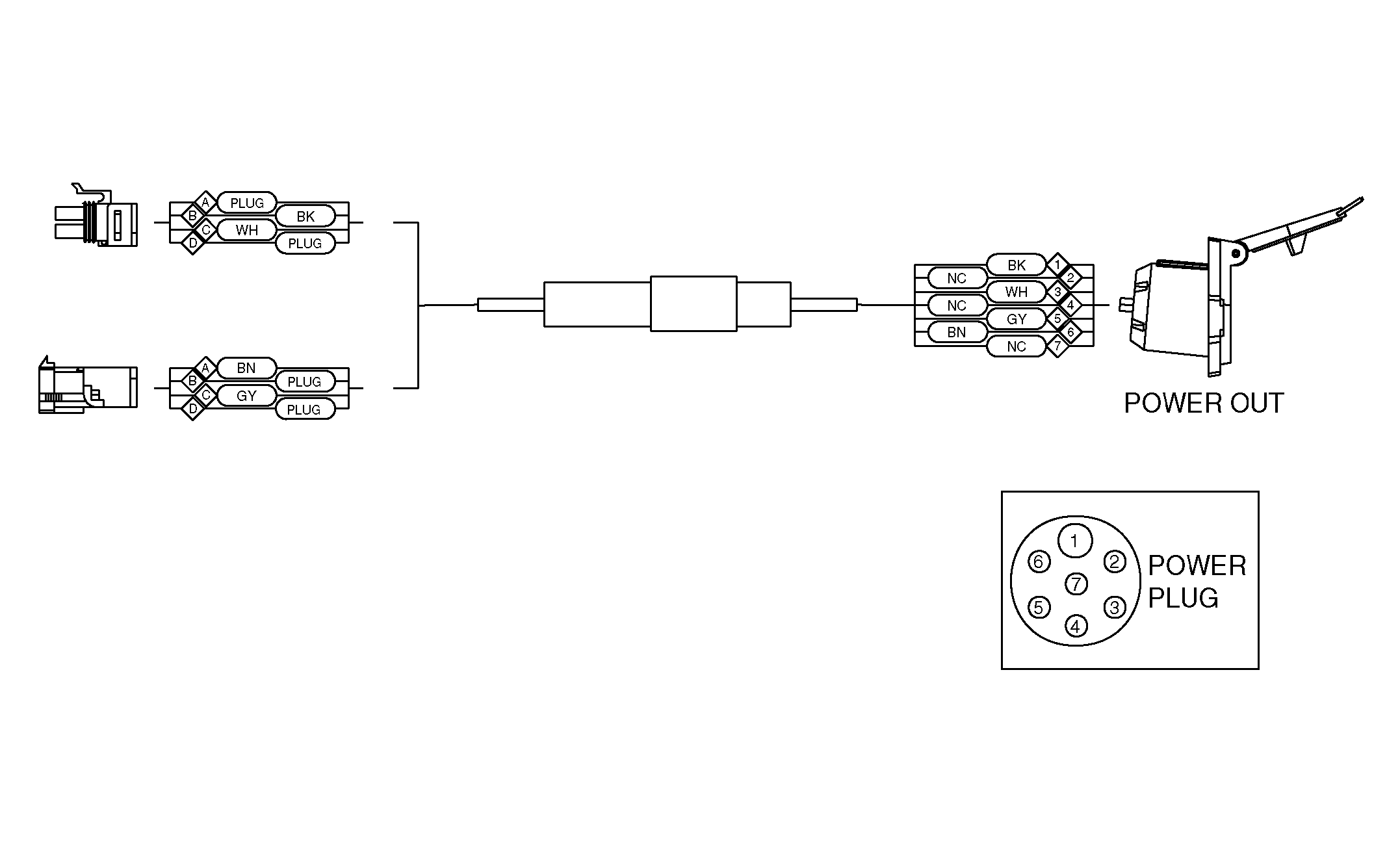

IMPORTANT: Wiring harness is provided to illuminate warning lights on an implement pulled behind a tow-behind cart and should only be connected to electrical system when transporting with a rear-attached implement.

When rear lighting harness is attached, cart warning lights are disconnected from the electrical system and will not operate.

Connect harness leads to cart electrical system only when a rear attached implement (equipped with warning lights) is transported. When

done transporting rear attached implement, disconnect rear lighting harness from electrical system and reconnect cart warning light leads, returning cart warning lights to operation.

1. When needed for transporting rear attached implement, connect plug-in connectors to cart harness leads in place of left-hand and right-hand lighting leads.

2. When done transporting, disconnect rear lighting harness from electrical system and reconnect cart warning light leads, returning cart warning lights to operation.

AG,OUO6023,1018 -19-21JUL00-1/1
